089150 DODGE - HD-200x48-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 089150 DODGE - HD-200x48-TUFR
Category - HD Protected Screw Take-Up Frame
Description - HD-200x48-TUFR
Frame Size - HD-200
Travel (inch) - 48
Weight (lbs) - 110

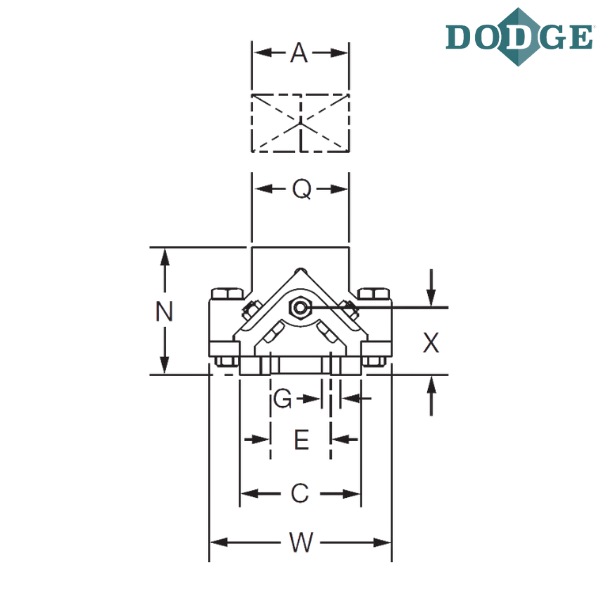

Overall Length (B) inch - 67
C (inch) - 5
Bolt Center-to-Center Length of F-Bolt (D) inch - 65
Bolt Center-to-Center Width (E) inch - 2.5
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.75
H (inch) - 0.75
L (inch) - 8.5
Overall Height (N) inch - 5.25
O (inch) - 4
P (inch) - 11
Saddle Dimension (Q) inch - 4
Saddle Dimension (R) inch - 11
S Screw Diameter (inch) - 1
W (inch) - 7.5
X (inch) - 2.5625
Y-Bolt Dianeter (inch) - 0.625
Maximum Bolt to Bolt Distance of Y-Bolt (Z max) inch - 9.0625
Minimum Bolt to Bolt Distance of Y-Bolt (Z min) inch - 5.9375

Notes :
HD - Heavy Duty Protected Screw Take-Up Frame
200 - Frame Size Designation
48 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
