089028 DODGE - HD-250x36-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 089028 DODGE - HD-250x36-TUFR
Category - HD Protected Screw Take-Up Frame
Description - HD-250x36-TUFR
Frame Size - HD-250
Travel (inch) - 36
Weight (lbs) - 143

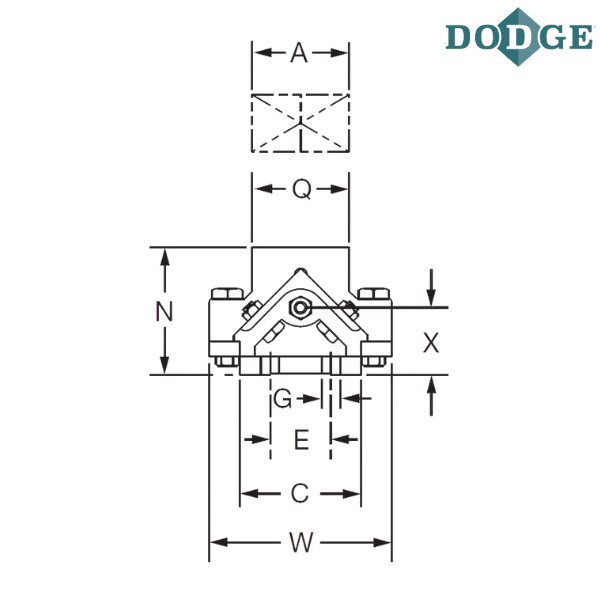

Overall Length (B) inch - 59.25
C (inch) - 6
Bolt Center-to-Center Length of F-Bolt (D) inch - 56.75
Bolt Center-to-Center Width (E) inch - 3
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.75
H (inch) - 0.75
L (inch) - 10.375
Overall Height (N) inch - 6.25
O (inch) - 5
P (inch) - 13.25
Saddle Dimension (Q) inch - 4.5
Saddle Dimension (R) inch - 13
S Screw Diameter (inch) - 1
W (inch) - 8.25
X (inch) - 3.25
Y-Bolt Dianeter (inch) - 0.75
Maximum Bolt to Bolt Distance of Y-Bolt (Z max) inch - 10.875
Minimum Bolt to Bolt Distance of Y-Bolt (Z min) inch - 7.625

Notes :
HD - Heavy Duty Protected Screw Take-Up Frame
250 - Frame Size Designation
36 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
