077233 DODGE - P2B-EXL-204R

Brand - DODGE
Item Number - 077233 DODGE - P2B-EXL-204R
Category - 2-Bolt Base Type EXL Pillow Block (Non-Expansion)
Shaft Size (inch) - 2.25
Part Name (Non-Expansion) - P2B-EXL-204R
Part Number (Expansion) - 077256
Part Name (Expansion) - P2B-EXL-204RE
Approximate Weight (lbs) - 24

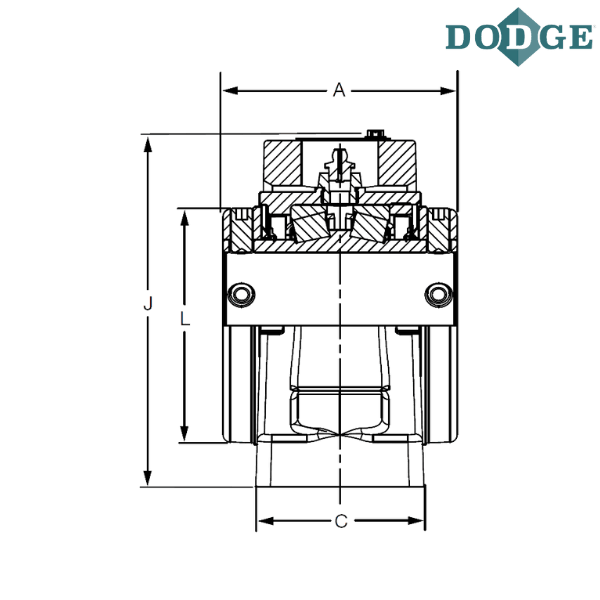

Length Through Bore (A) inch - 4
Overall Length (B) inch - 10.38
C (inch) - 2.88
Bolt to Bolt Minimum Distance (D min) inch - 6.94
Bolt to Bolt Maximum Distance (D max) inch - 8.69
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.63
H (inch) - 1.63
J (inch) - 6.08
L (inch) - 4.06
Base to Center Height (M) inch - 2.75
P (inch) - 6.41
EXP* (inch) - 0.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
EXL - Type EXL
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
