077225 DODGE - P2B-EXL-108R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 077225 DODGE - P2B-EXL-108R
Category - 2-Bolt Base Type EXL Pillow Block (Non-Expansion)
Shaft Size (inch) - 1.5
Part Name (Non-Expansion) - P2B-EXL-108R
Part Number (Expansion) - 077248
Part Name (Expansion) - P2B-EXL-108RE
Approximate Weight (lbs) - 12

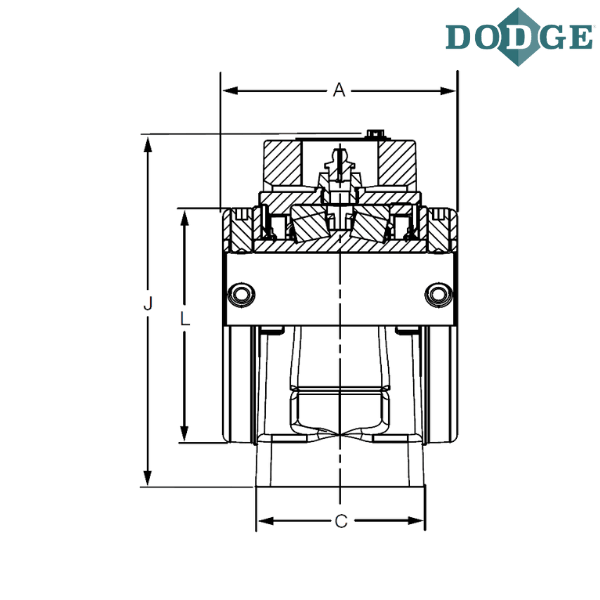

Length Through Bore (A) inch - 3.38
Overall Length (B) inch - 7.75
C (inch) - 2.37
Bolt to Bolt Minimum Distance (D min) inch - 5.56
Bolt to Bolt Maximum Distance (D max) inch - 6.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.07
H (inch) - 1.25
J (inch) - 4.69
L (inch) - 3.19
Base to Center Height (M) inch - 2.13
P (inch) - 5.13
EXP* (inch) - 0.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
EXL - Type EXL
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
