Description
Brand - DODGE
Item Number - 076584 DODGE - F2B-DLEZ-102-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - F2B-DLEZ-102-SHCR
Weight (lbs) - 2.21

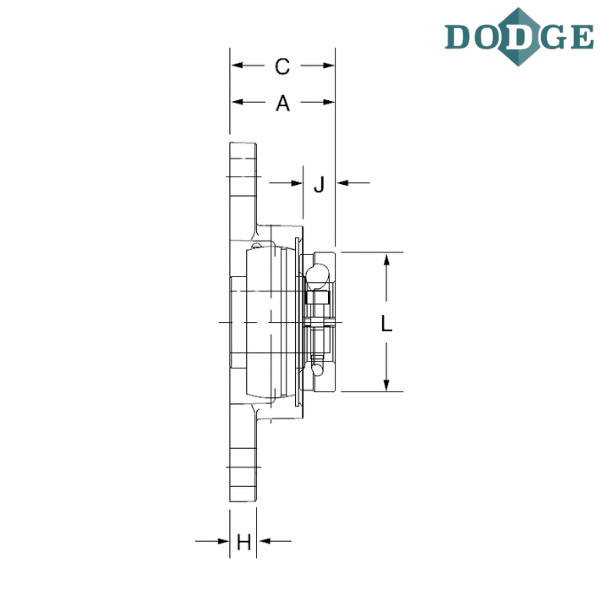

Length Through Bore (A) inch - 1.56
Overall Length (B) inch - 5.51
Thickness (C) inch - 1.63
Bolt Center to Center Length (D) inch - 4.59
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.35
J (inch) - 0.5
L (inch) - 2.22
Overall Width (M) inch - 3.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
