Description
Brand - DODGE
Item Number - 076332 DODGE - FC-SCMED-75M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty Piloted Flange Bearings)
Series - 216
Shaft Size (mm) - 75mm
Description - FC-SCMED-75M
Weight (kg) - 8.5

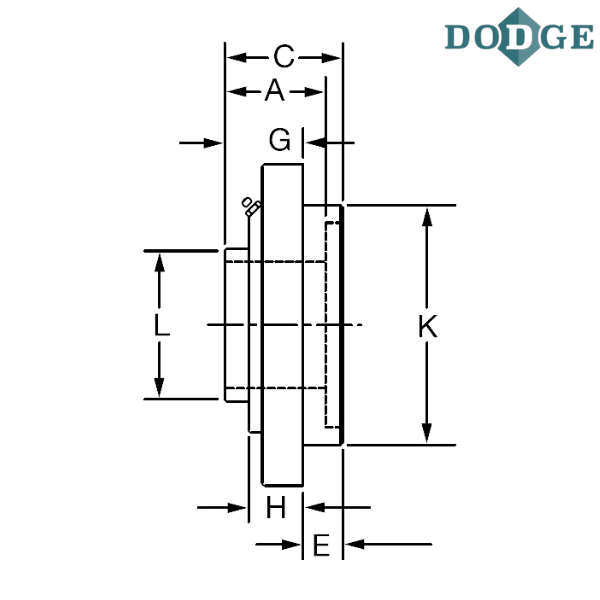

Length Through Bore (A) mm - 60.5
Overall Length (B) mm - 222.3
Thickness (C) mm - 76.7
Bolt Circle (D) mm - 190.5
Pilot Depth (E) mm - 31.8
F-Bolt Diameter - M16
G (mm) - 45
H (mm) - 30.2
Pilot Diameter (K) mm - 161.93/161.87
L (mm) - 97.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
