Description
Brand - DODGE
Item Number - 076327 DODGE - FC-SCMED-40M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty Piloted Flange Bearings)
Series - 209
Shaft Size (mm) - 40mm
Description - FC-SCMED-40M
Weight (kg) - 2.5

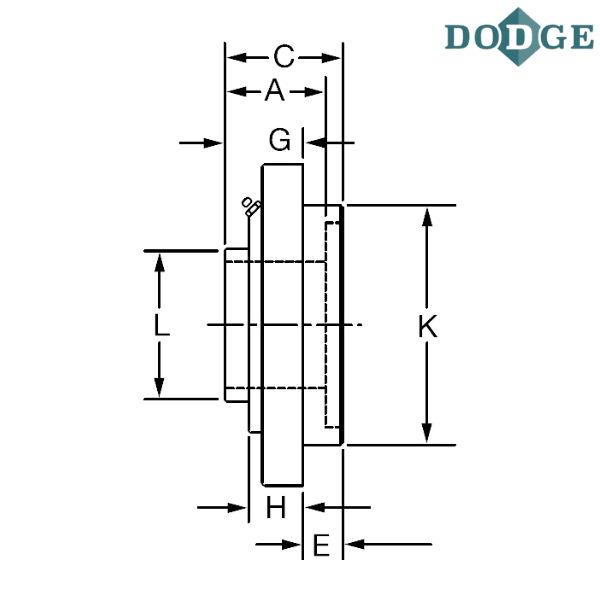

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 146.1
Thickness (C) mm - 49.5
Bolt Circle (D) mm - 120.7
Pilot Depth (E) mm - 11.2
F-Bolt Diameter - M12
G (mm) - 38.4
H (mm) - 23.1
Pilot Diameter (K) mm - 101.60/101.55
L (mm) - 56.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
