Description
Brand - DODGE
Item Number - 076326 DODGE - FC-SCMED-35M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty Piloted Flange Bearings)
Series - 208
Shaft Size (mm) - 35mm
Description - FC-SCMED-35M
Weight (kg) - 2.1

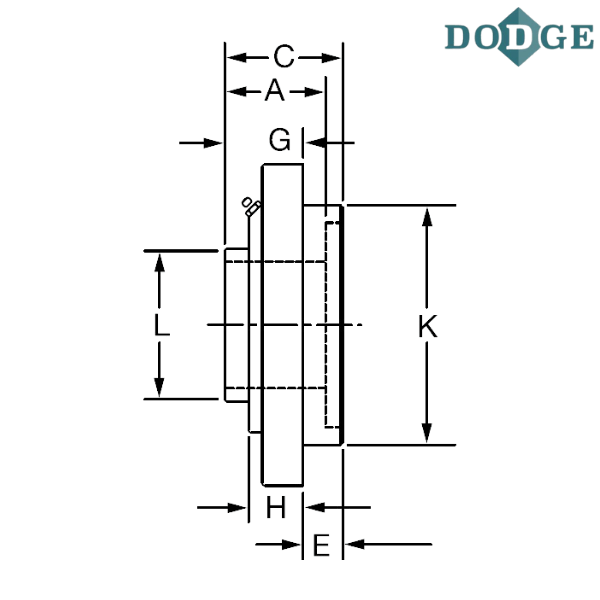

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 133.4
Thickness (C) mm - 50.3
Bolt Circle (D) mm - 111.3
Pilot Depth (E) mm - 11.2
F-Bolt Diameter - M12
G (mm) - 39.1
H (mm) - 22.6
Pilot Diameter (K) mm - 92.08/92.02
L (mm) - 52.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
