Description
Brand - DODGE
Item Number - 076325 DODGE - FC-SCMED-30M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty Piloted Flange Bearings)
Series - 207
Shaft Size (mm) - 30mm
Description - FC-SCMED-30M
Weight (kg) - 1.9

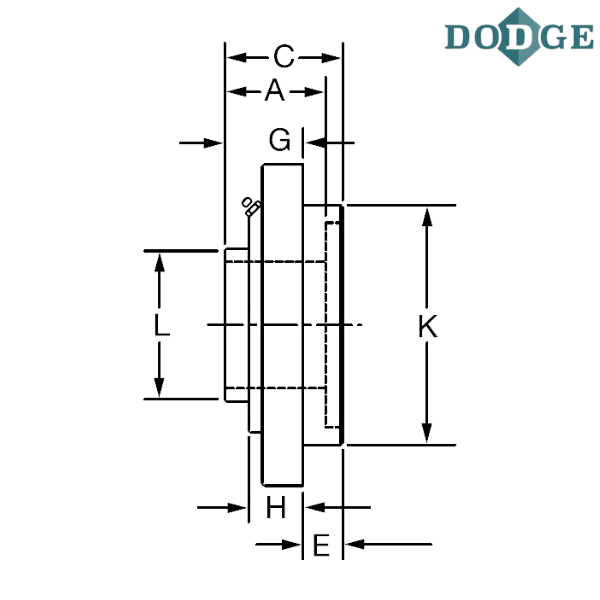

Length Through Bore (A) mm - 43.4
Overall Length (B) mm - 127
Thickness (C) mm - 45.2
Bolt Circle (D) mm - 104.9
Pilot Depth (E) mm - 9.7
F-Bolt Diameter - M10
G (mm) - 35.6
H (mm) - 21.3
Pilot Diameter (K) mm - 85.73/85.67
L (mm) - 46.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
