Description
Brand - DODGE
Item Number - 076324 DODGE - FC-SCMED-25M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 25mm
Description - FC-SCMED-25M
Weight (kg) - 1.4

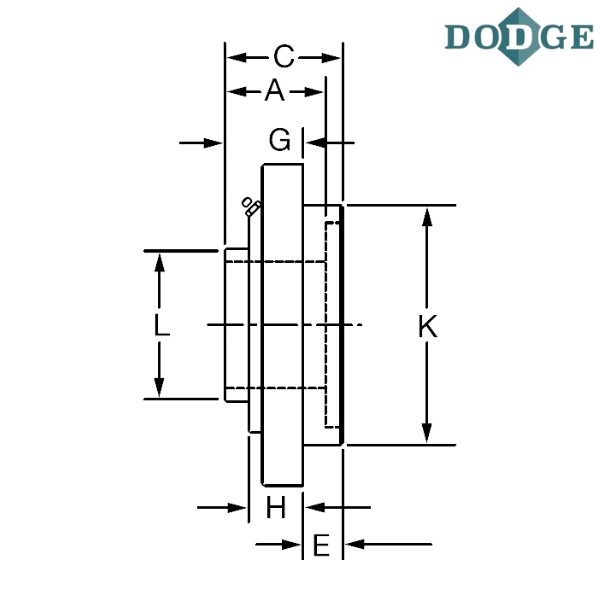

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 111.3
Thickness (C) mm - 38.9
Bolt Circle (D) mm - 92.2
Pilot Depth (E) mm - 6.4
F-Bolt Diameter - M10
G (mm) - 32.5
H (mm) - 20.6
Pilot Diameter (K) mm - 76.20/76.15
L (mm) - 39.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
