Description
Brand - DODGE
Item Number - 076311 DODGE - F2B-SCMED-45M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 45
Description - F2B-SCMED-45M
Weight (kg) - 2.6

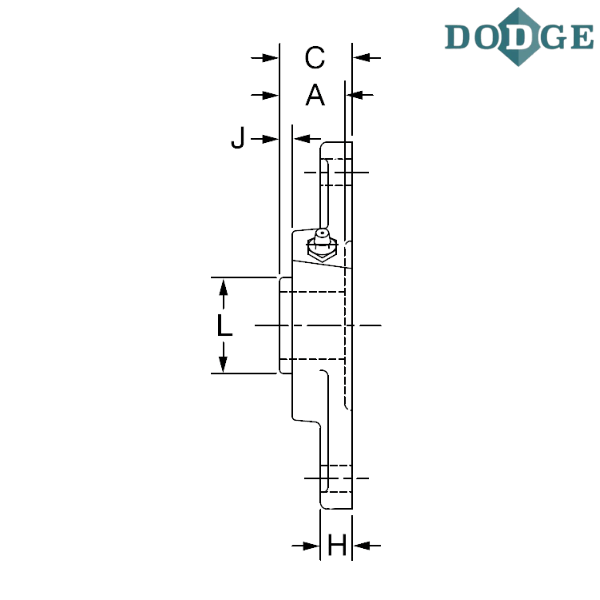

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 189
Thickness (C) mm - 51.3
Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter - M16
H (mm) - 16
J (mm) - 14
L (mm) - 61.7
Overall Width (M) mm - 115.8
N (mm) - 51.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
