Description
Brand - DODGE
Item Number - 076308 DODGE - F2B-SCMED-30M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 30
Description - F2B-SCMED-30M
Weight (kg) - 1.6

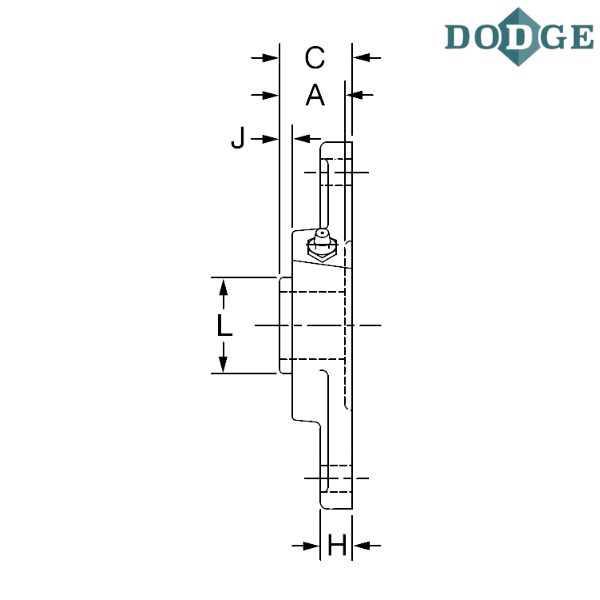

Length Through Bore (A) mm - 43.4
Overall Length (B) mm - 155.7
Thickness (C) mm - 44.5
Bolt Center to Center Length (D) mm - 130
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 13.5
L (mm) - 46.7
Overall Width (M) mm - 95.3
N (mm) - 46.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
