Description
Brand - DODGE
Item Number - 076264 DODGE - FC-SCED-70M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Piloted Flange Bearings)
Series - 214
Shaft Size (mm) - 70mm
Description - FC-SCED-70M
Weight (kg) - 5.5

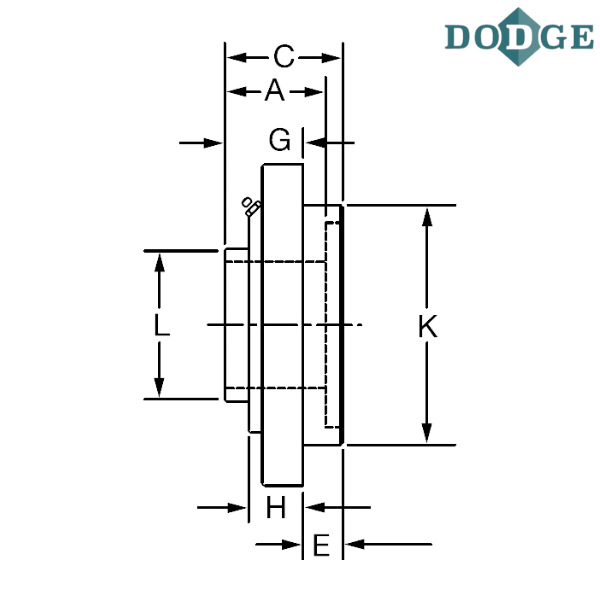

Length Through Bore (A) mm - 64.5
Overall Length (B) mm - 193.8
Thickness (C) mm - 71.1
Bolt Circle (D) mm - 165.1
Pilot Depth (E) mm - 28.7
F-Bolt Diameter - M12
G (mm) - 42.4
H (mm) - 26.9
Pilot Diameter (K) mm - 139.70/139.65
L (mm) - 84.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
