Description
Brand - DODGE
Item Number - 076262 DODGE - FC-SCED-55M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Piloted Flange Bearings)
Series - 211
Shaft Size (mm) - 55mm
Description - FC-SCED-55M
Weight (kg) - 3.3

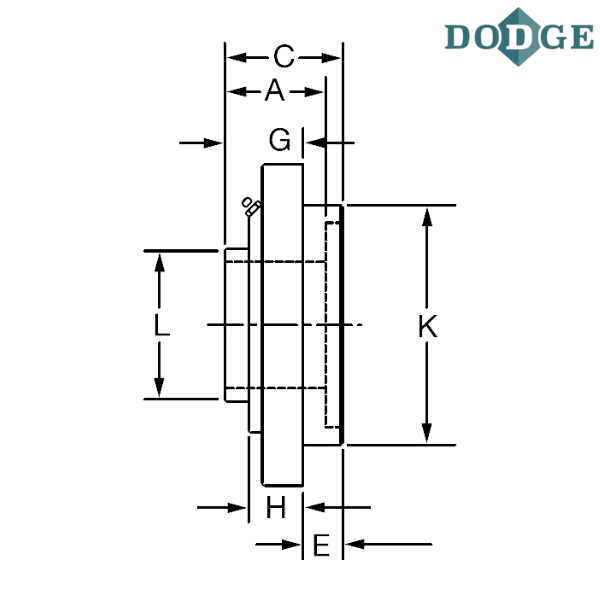

Length Through Bore (A) mm - 56.4
Overall Length (B) mm - 162.1
Thickness (C) mm - 59.7
Bolt Circle (D) mm - 136.7
Pilot Depth (E) mm - 16
F-Bolt Diameter - M12
G (mm) - 43.7
H (mm) - 25.4
Pilot Diameter (K) mm - 114.30/114.25
L (mm) - 68.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
