Description
Brand - DODGE
Item Number - 076255 DODGE - F4B-SCED-70M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 4-Bolt Flange Bearings)
Series - 214
Shaft Size (mm) - 70mm
Description - F4B-SCED-70M
Weight (kg) - 6.9

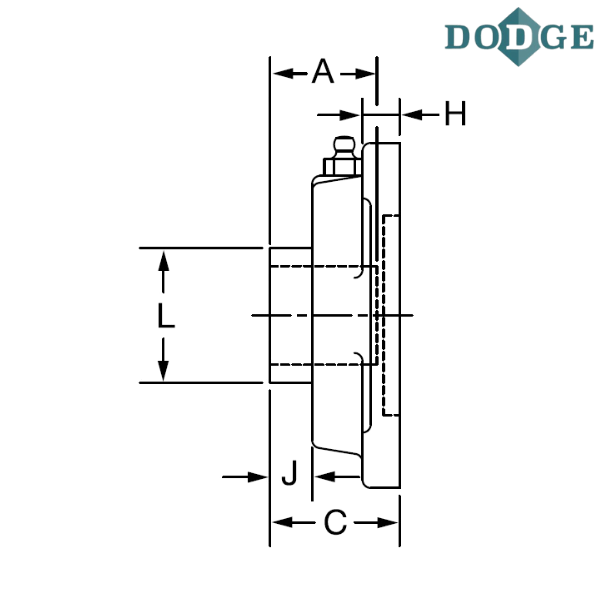

Length Through Bore (A) mm - 64.5
Overall Length (B) mm - 187.5
Thickness (C) mm - 70.6
Bolt Center to Center Length (D) mm - 149.2
F-Bolt Diameter - M16
H (mm) - 17.5
J (mm) - 15.2
L (mm) - 84.1
N (mm) - 93.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
