Description
Brand - DODGE
Item Number - 076251 DODGE - F4B-SCED-45M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 4-Bolt Flange Bearings)
Series - 209
Shaft Size (mm) - 45mm
Description - F4B-SCED-45M
Weight (kg) - 2.7

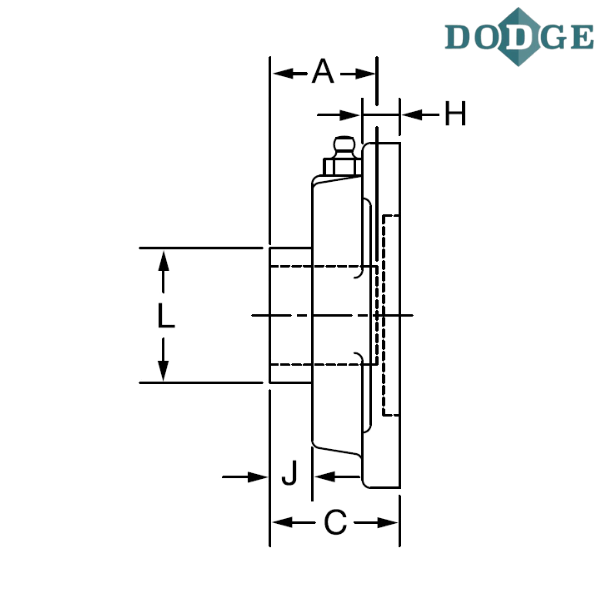

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 136.7
Thickness (C) mm - 50.5
Bolt Center to Center Length (D) mm - 104.8
F-Bolt Diameter - M14
H (mm) - 16
J (mm) - 15
L (mm) - 56.4
N (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
