Description
Brand - DODGE
Item Number - 076245 DODGE - F2B-SCED-50M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - F2B-SCED-50M
Weight (kg) - 2.5

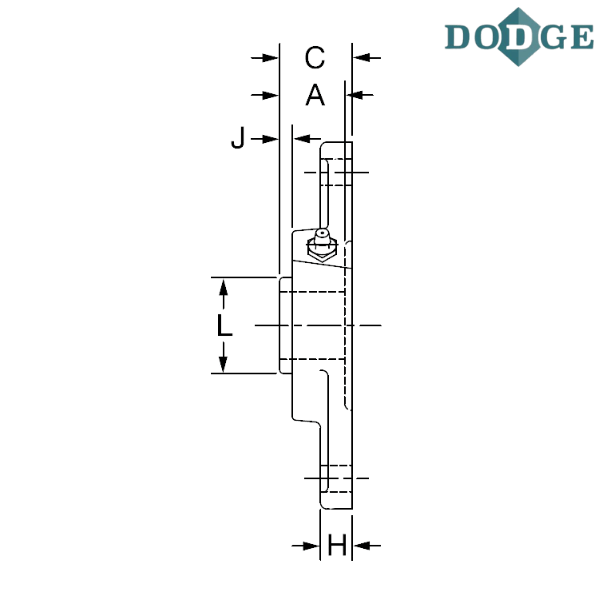

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 189
Thickness (C) mm - 51.3
Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter - M16
H (mm) - 16
J (mm) - 14
L (mm) - 61.7
Overall Width (M) mm - 115.8
N (mm) - 51.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
