Description
Brand - DODGE
Item Number - 076244 DODGE - F3B-SCED-45M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 2-Bolt Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - F3B-SCED-45M
Weight (kg) - 2.2

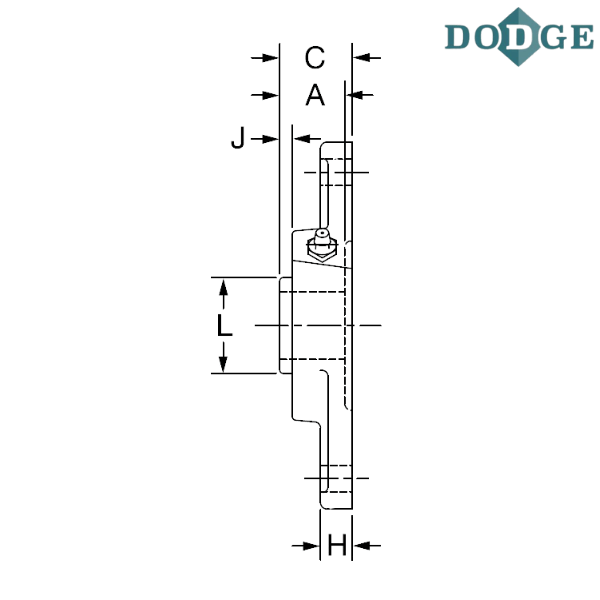

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 179.3
Thickness (C) mm - 50.5
Bolt Center to Center Length (D) mm - 148.3
F-Bolt Diameter - M14
H (mm) - 16
J (mm) - 15
L (mm) - 56.4
Overall Width (M) mm - 111.3
N (mm) - 48.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
