Description
Brand - DODGE
Item Number - 076240 DODGE - F2B-SCED-25M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F2B-SCED-25M
Weight (kg) - 0.6

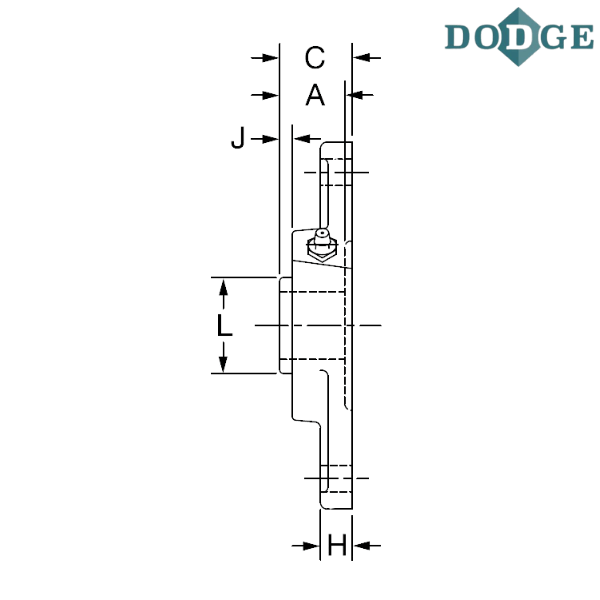

Length Through Bore (A) mm - 34
Overall Length (B) mm - 124
Thickness (C) mm - 34.8
Bolt Center to Center Length (D) mm - 98.8
F-Bolt Diameter - M10
H (mm) - 13.2
J (mm) - 10.7
L (mm) - 33.5
Overall Width (M) mm - 69.9
N (mm) - 36.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
