076071 DODGE - FC-SCED-115

Brand - DODGE
Item Number - 076071 DODGE - FC-SCED-115
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Piloted Flange Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - FC-SCED-115
Weight (lbs) - 6.4

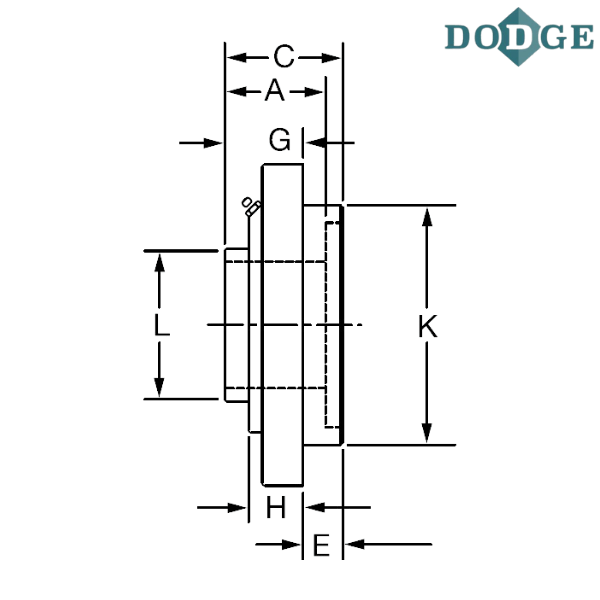

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 6.13
Thickness (C) inch - 1.98
Bolt Circle (D) inch - 5.13
Pilot Depth (E) inch - 0.47
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.51
H (inch) - 0.92
Pilot Diameter (K) inch - 4.250/4.248
L (inch) - 2.43
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
SCED - Extreme duty

** Images are for representation purposes only
