Description
Brand - DODGE
Item Number - 076069 DODGE - FC-SCED-111
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Piloted Flange Bearings)
Series - 209
Shaft Size (inch) - 1.6875
Description - FC-SCED-111
Weight (lbs) - 5.5

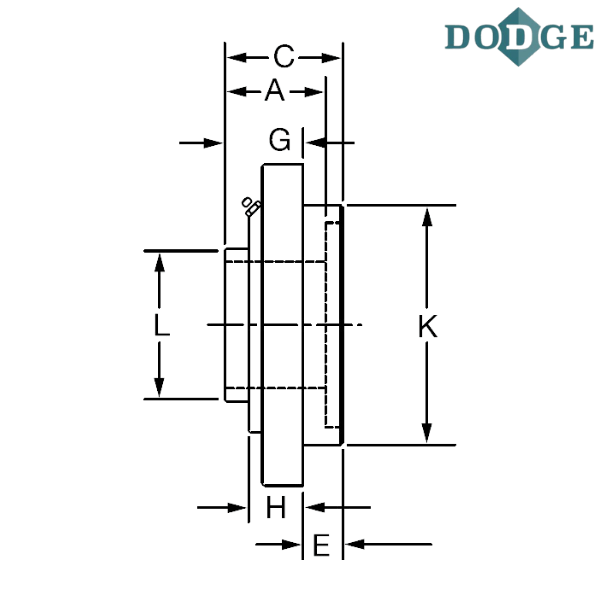

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.75
Thickness (C) inch - 1.95
Bolt Circle (D) inch - 4.75
Pilot Depth (E) inch - 0.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.51
H (inch) - 0.91
Pilot Diameter (K) inch - 4.000/3.998
L (inch) - 2.22
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge (piloted flange)
SCED - Extreme duty
** Images are for representation purposes only
