076056 DODGE - F4B-SCED-112


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 076056 DODGE - F4B-SCED-112
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 4-Bolt Flange Bearings)
Series - 209
Shaft Size (inch) - 1.75
Description - F4B-SCED-112
Weight (lbs) - 5.9

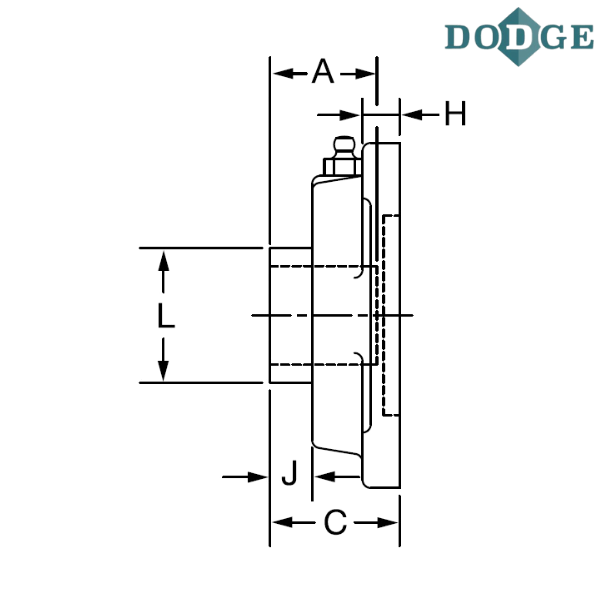

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.38
Thickness (C) inch - 1.99
Bolt Center to Center Length (D) inch - 4.13
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.59
L (inch) - 2.22
N (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
SCED - Extreme duty

** Images are for representation purposes only
