075489 DODGE - LFT-GT-30M

Brand - DODGE
Item Number - 075489 DODGE - LFT-GT-30M
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - LFT-GT-30M
Part Number (Unit without Adapter Sleeve and Nut) - 136358
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-06
Part Number (Adapter and Nut Assembly) - 136555
Description (Adapter and Nut Assembly) - AN-GT-06-30M-D
Weight (kg) - 0.67

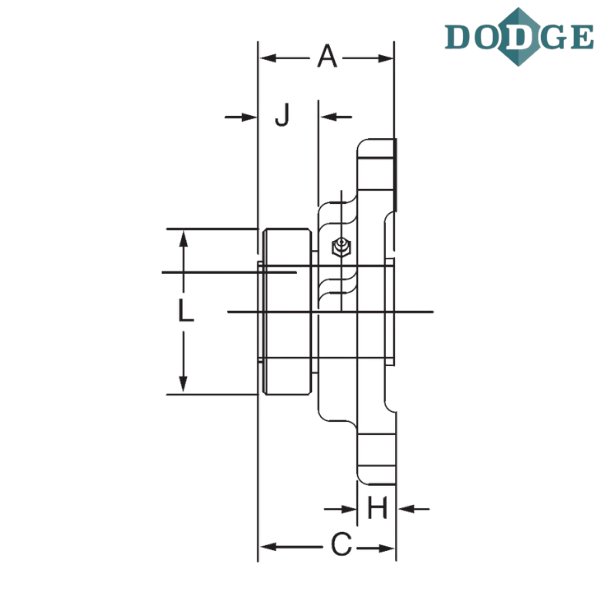

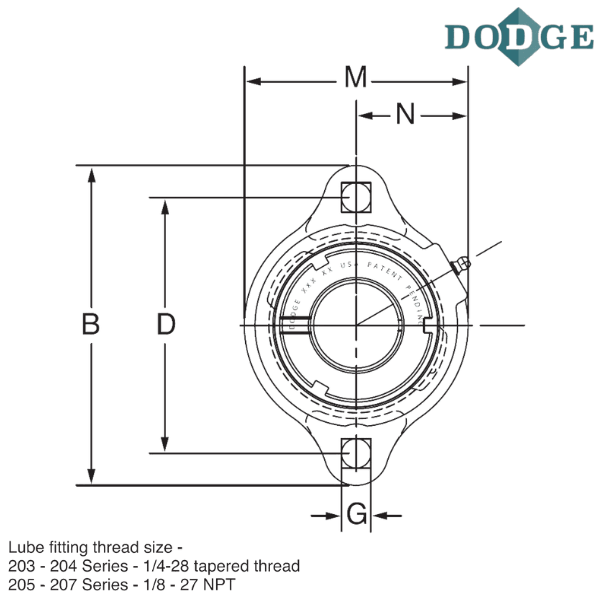

Length Through Bore (A) mm - 40.9
Overall Length (B) mm - 112.8
Thickness (C) mm - 41.7
Bolt Center to Center Length (D) mm - 90.4
G (mm) - 10.4
H (mm) - 11.9
J (mm) - 16.5
L (mm) - 52.8
Overall Width (M) mm - 82.6
N (mm) - 43.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

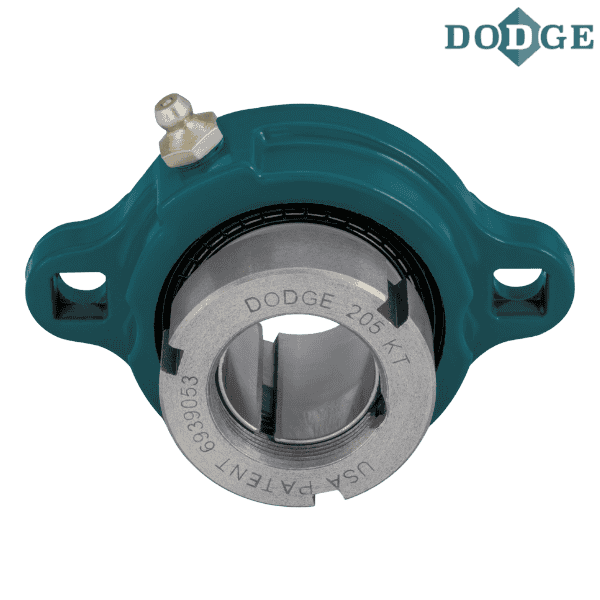

** Images are for representation purposes only
