Description
Brand - DODGE
Item Number - 075286 DODGE - TP-DLM-115

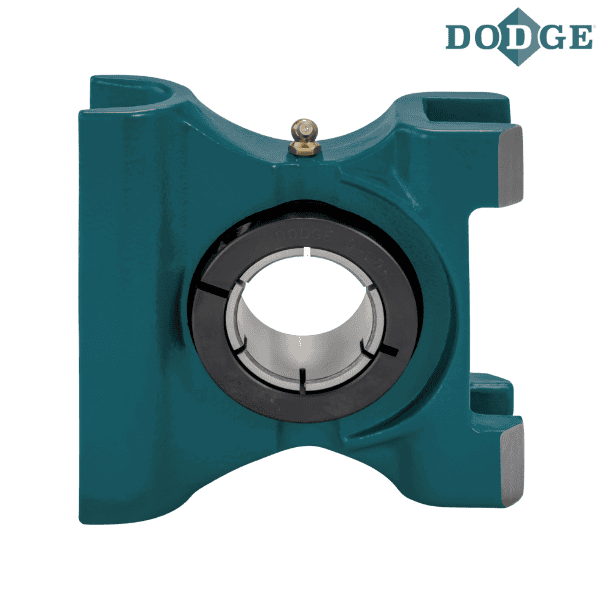

Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 211
Shaft Size (inch) - 1.9375
Description - TP-DLM-115
Weight (lbs) - 14
Take-Up Frame Size - TP20

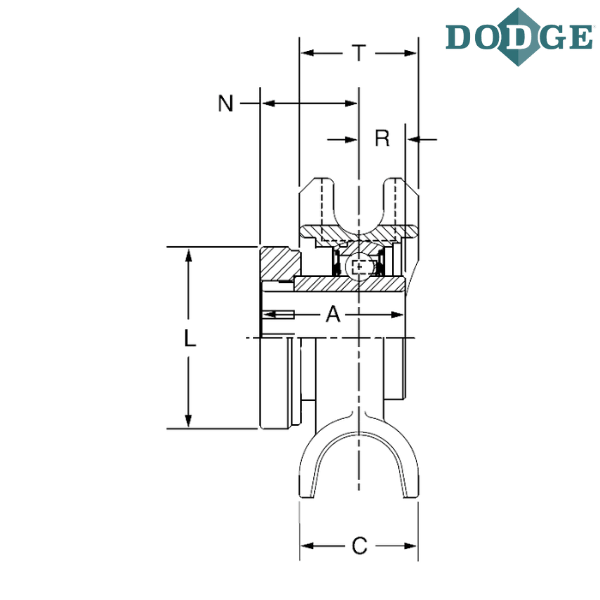

Length Through Bore (A) inch - 2.25

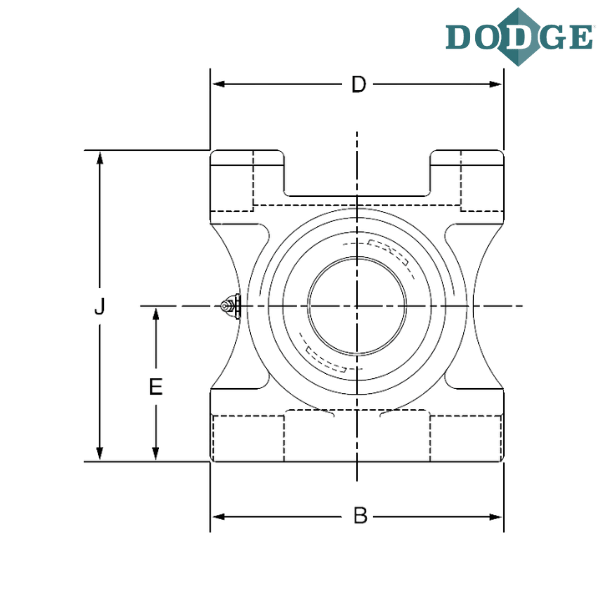

Overall Length (B) inch - 7
C (inch) - 2.5
D (inch) - 6.75
E (inch) - 3.38
Overall Width (J) inch - 7.88
L (inch) - 3.69
N (inch) - 1.37
R (inch) - 0.88
T (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up
DLM - Wide inner ring, medium duty, concentric clamp collar
** Images are for representation purposes only
