075154 DODGE - P2B509-ISN-108 FS

Brand - DODGE
Item Number - 075154 DODGE - P2B509-ISN-108 FS
Category - ISN Plummer Blocks With Labyrinth Seals (Fixed Bearing)
Series - 509
Shaft Size (inch) - 1.5
Description - P2B509-ISN-108 FS

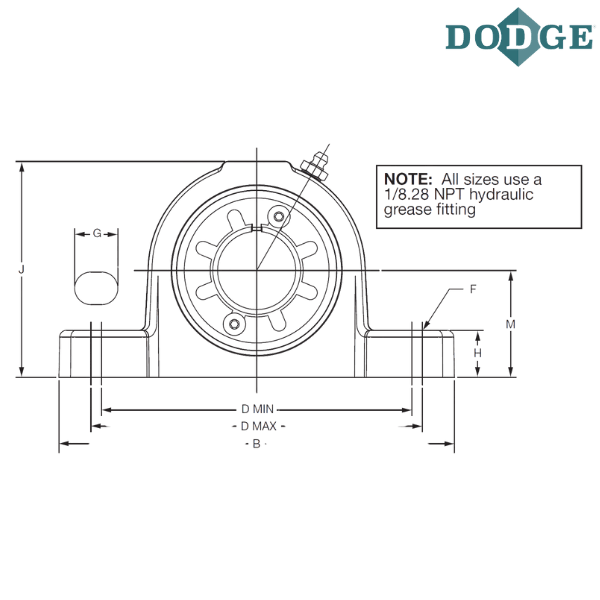

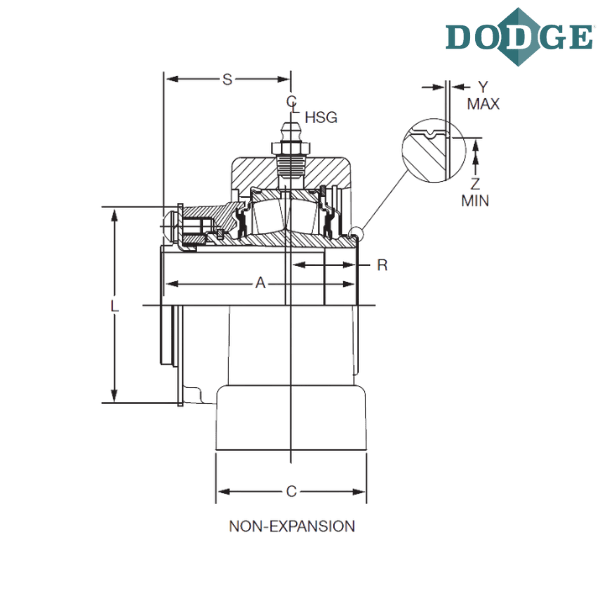

Length Through Bore (A) mm - 71.4
Overall Length (B) mm - 206.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 155
Bolt to Bolt Maximum Distance (D max) mm - 174.6
F-Bolt Diameter - M12
G (mm) - 24.8
H (mm) - 25
Overall Height (J) mm - 114
L (mm) - 74.7
Base to Center Height (M) mm - 60
R (mm) - 20.6
S (mm) - 50.8

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
F - Non-Expansion
S - Labyrinth Seal

** Images are for representation purposes only
