Description
Brand - DODGE
Item Number - 074254 DODGE - TP-DL-115
Category - D-LOK® Ball Bearings (DL Normal Duty Top Angle Take-Up Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - TP-DL-115
Weight (lbs) - 11.4
Take-Up Frame Size - TP10

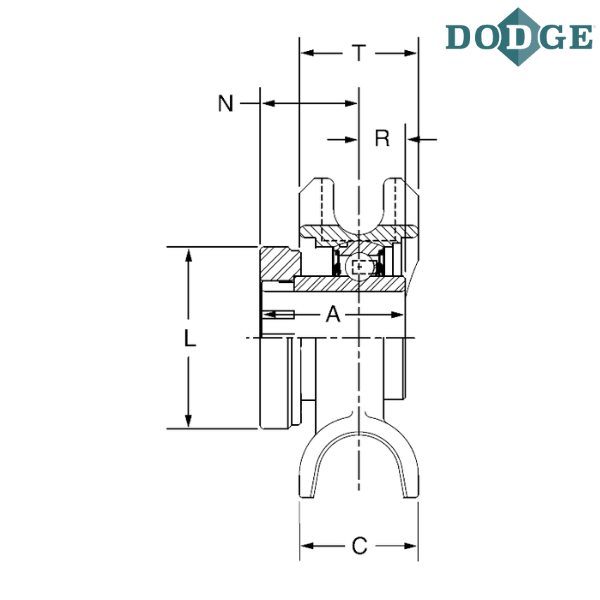

Length Through Bore (A) inch - 2.01

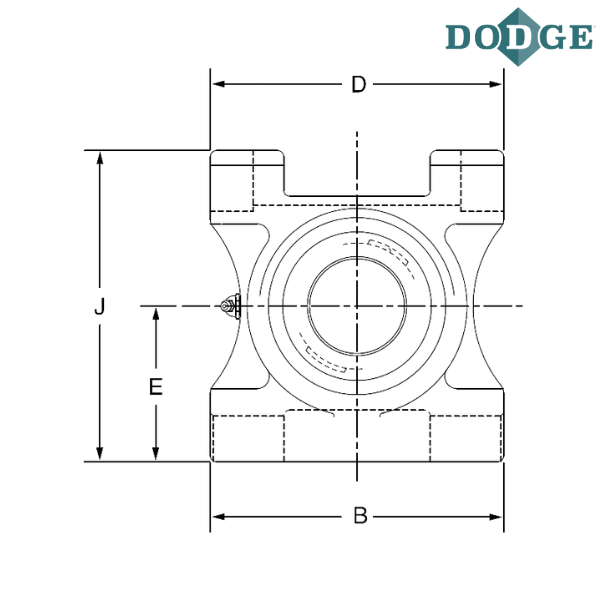

Overall Length (B) inch - 6.5
C (inch) - 2.38
D (inch) - 6
E (inch) - 3.25
Overall Width (J) inch - 6.38
L (inch) - 3.24
N (inch) - 1.26
R (inch) - 0.75
T (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up
DL - Wide inner ring, normal duty, concentric clamp collar

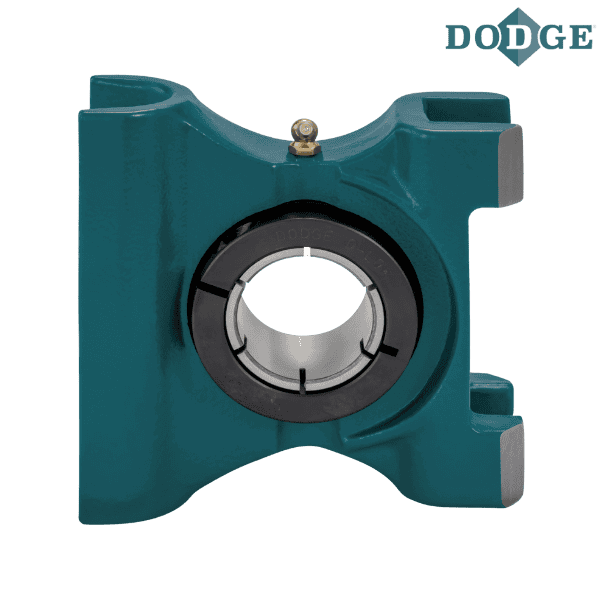

** Images are for representation purposes only
