074163 DODGE - NSTU-DLM-203

Brand - DODGE
Item Number - 074163 DODGE - NSTU-DLM-203
Category - D-LOK® Ball Bearings (DLM Medium Duty Narrow Slot Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.1875
Description - NSTU-DLM-203
Weight (lbs) - 8.7
Take-Up Frame Size - NS415

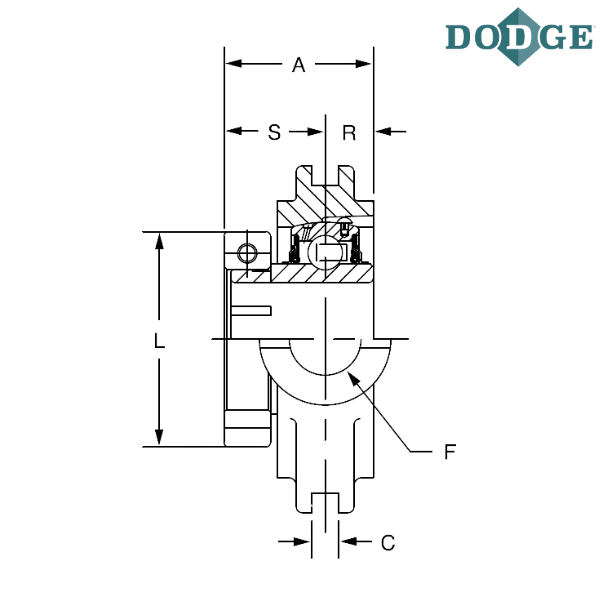

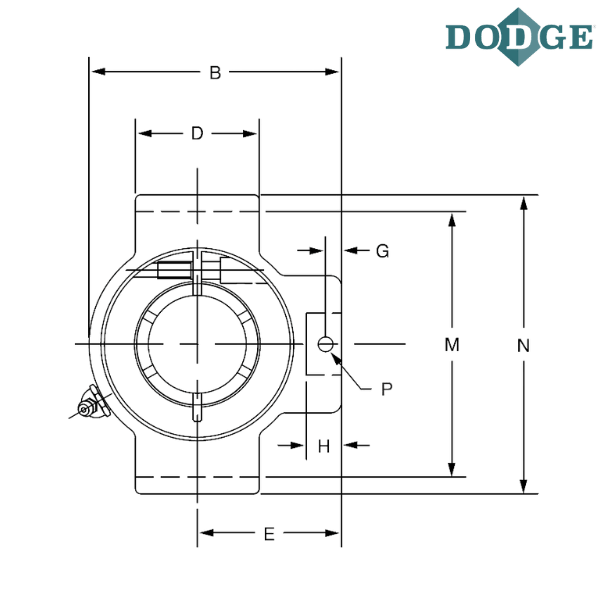

Length Through Bore (A) inch - 2.38
Overall Length (B) inch - 6.69
C (inch) - 0.313
D (inch) - 3.75
E (inch) - 3.88
F (Screw Diameter) inch - 1
G (inch) - 0.69
H (inch) - 1.28
J (inch) - 1.63
L (inch) - 4.11
M (inch) - 4.947/4.917
Overall Width (N) inch - 5.75
Pin Diameter (P) inch - 0.44
R (inch) - 0.9
S (inch) - 1.48
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

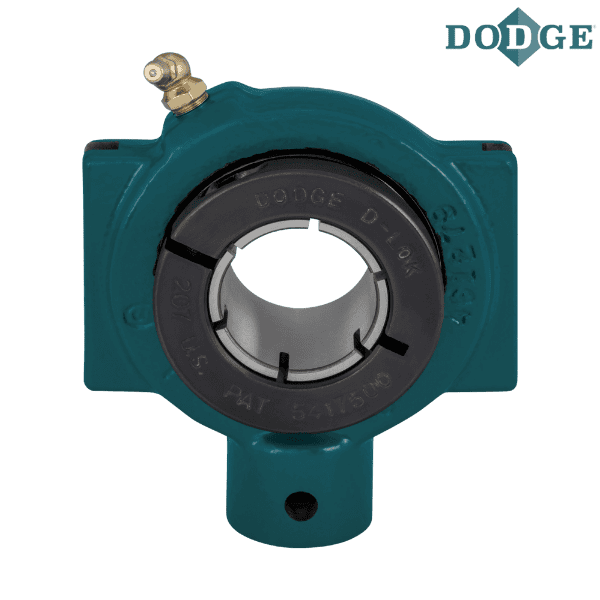

** Images are for representation purposes only
