Description
Brand - DODGE
Item Number - 073418 DODGE - P2B-SCH-25M-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Pillow Blocks)
Series - 205
Shaft Size (mm) - 25
Description - P2B-SCH-25M-E
Part Number (Non-Expansion) - 125925
Description (Non-Expansion) - P2B-SCM-25M
Weight (kg) - 1.2

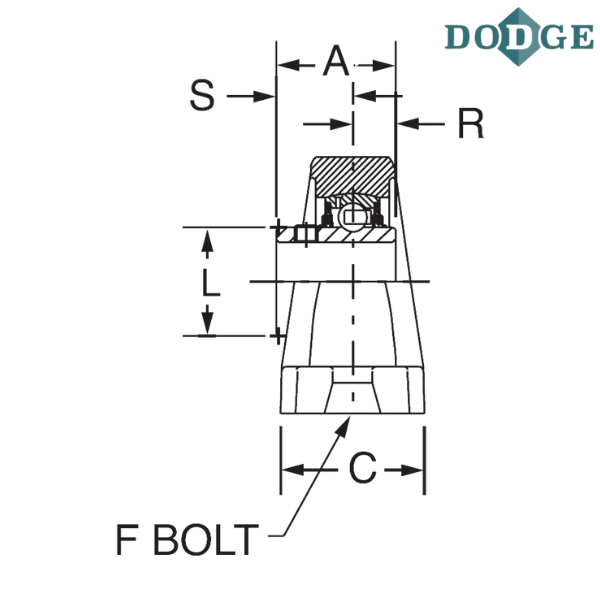

Length Through Bore (A) mm - 34
Overall Length (B) mm - 158.8
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 19.1
Overall Height (J) mm - 84.1
L (mm) - 33.5
Base to Center Height (M) mm - 42.9
R (mm) - 14.2
S (mm) - 19.8
Total Expansion (T) mm - 4.1

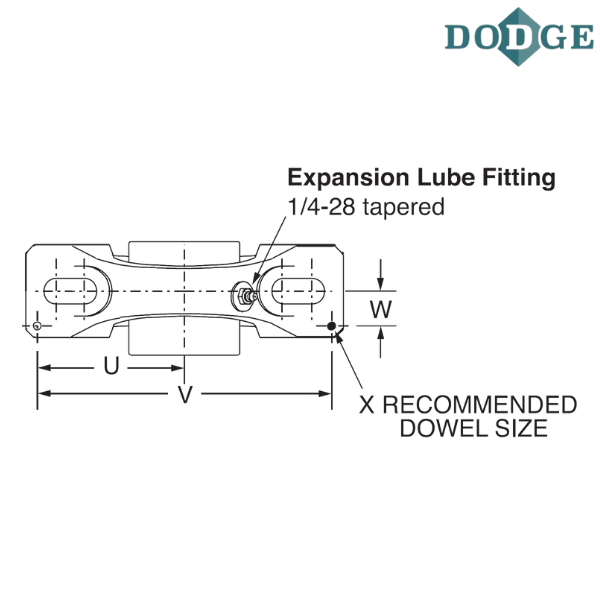

U (mm) - 73.2
V (mm) - 146.3
W (mm) - 14.2
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
M - Metric
E - Expansion
** Images are for representation purposes only
