Description
Brand - DODGE
Item Number - 073358 DODGE - P2B-SCH-35M-E
Category - Setscrew Ball Bearings (SCH-E Expansion Normal Duty Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - P2B-SCH-35M-E
Part Number (Non-Expansion) - 125927
Description (Non-Expansion) - P2B-SCM-35M
Weight (kg) - 2.7

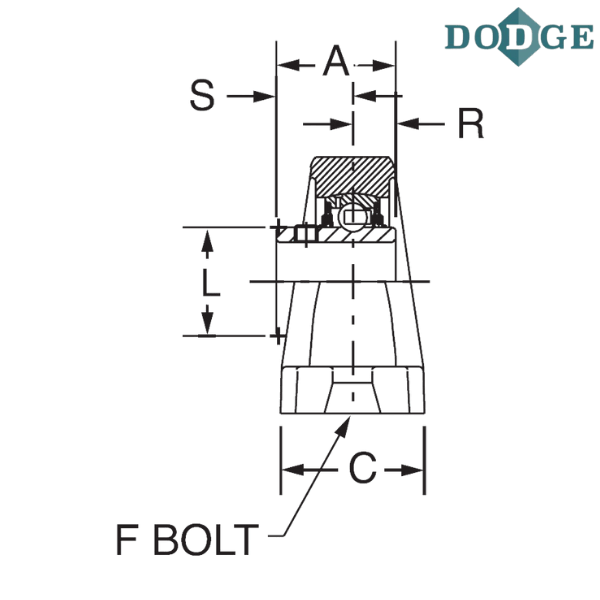

Length Through Bore (A) mm - 43.4
Overall Length (B) mm - 184.2
Width (C) mm - 49
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 149.4
F-Bolt Diameter - M12
G (mm) - 23.1
H (mm) - 23.6
Overall Height (J) mm - 106.4
L (mm) - 46.7
Base to Center Height (M) mm - 54.1
R (mm) - 17
S (mm) - 26.4
Total Expansion (T) mm - 4.1

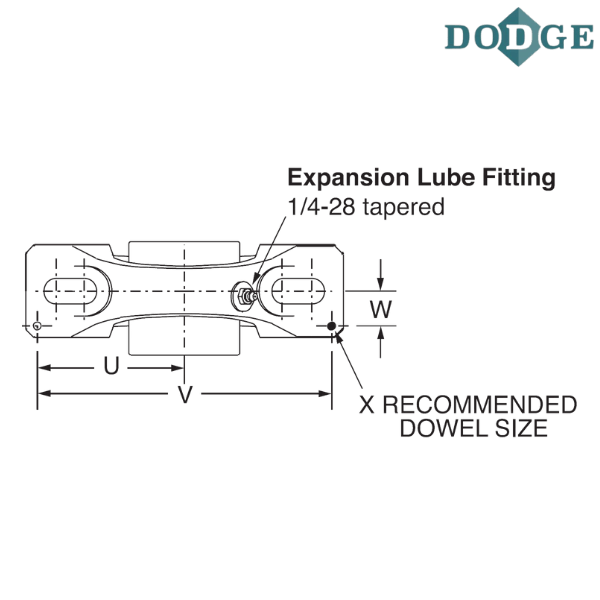

U (mm) - 82.8
V (mm) - 165.6
W (mm) - 17.5
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
H - High backing height
M - Metric
E - Expansion
** Images are for representation purposes only
