072924 DODGE - P4B148-ISNX-220MR HYD

Brand - DODGE
Item Number - 072924 DODGE - P4B148-ISNX-220MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3148
Bearing Series - 23148K
Shaft Size (mm) - 220
Description - P4B148-ISNX-220MR HYD
Insert Number - 072900

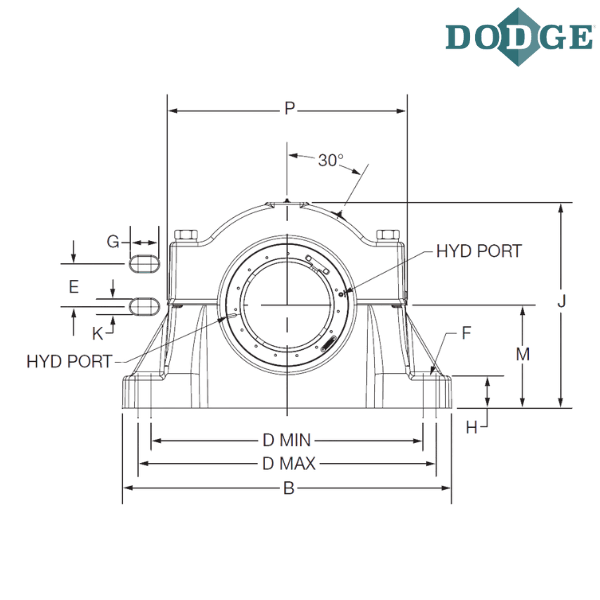

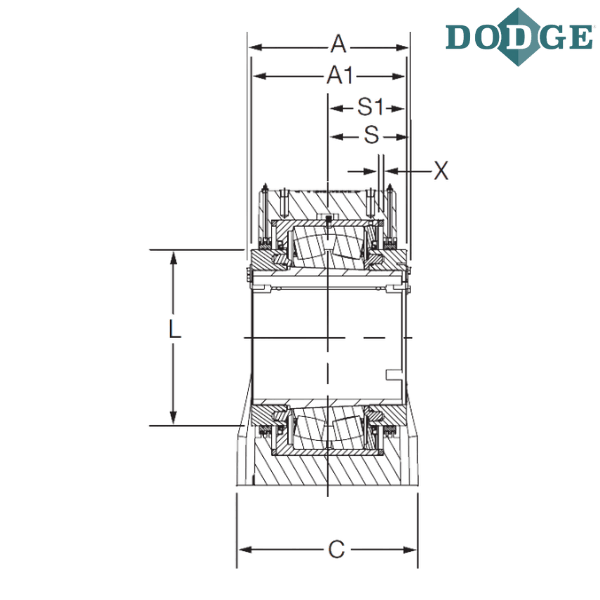

A (mm) - 316.5
A1 (mm) - 299.5
A2 (mm) - 188.7
Overall Length (B) mm - 700
Width (C) mm - 260.1
Bolt to Bolt Minimum Distance (D min) mm - 592.8
Bolt to Bolt Maximum Distance (D max) mm - 607.1
E (mm) - 149.9
F-Bolt Diameter (mm) - 30
G (mm) - 41.9
H (mm) - 95
Overall Height (J) mm - 486.2
K (mm) - 35.1
L (mm) - 310.9
L2 (mm) - 328.7
Base to Center Height (M) mm - 240
P (mm) - 530.4
S (mm) - 154.9
S1 (mm) - 146.6
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
