072923 DODGE - P4B144-ISNX-200MR HYD

Brand - DODGE
Item Number - 072923 DODGE - P4B144-ISNX-200MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3144
Bearing Series - 23144K
Shaft Size (mm) - 200
Description - P4B144-ISNX-200MR HYD
Insert Number - 072899

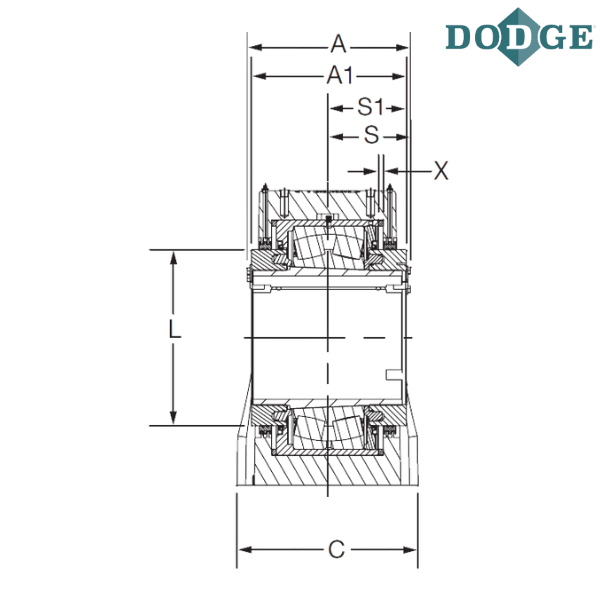

A (mm) - 294.9
A1 (mm) - 277.9
A2 (mm) - 175.8

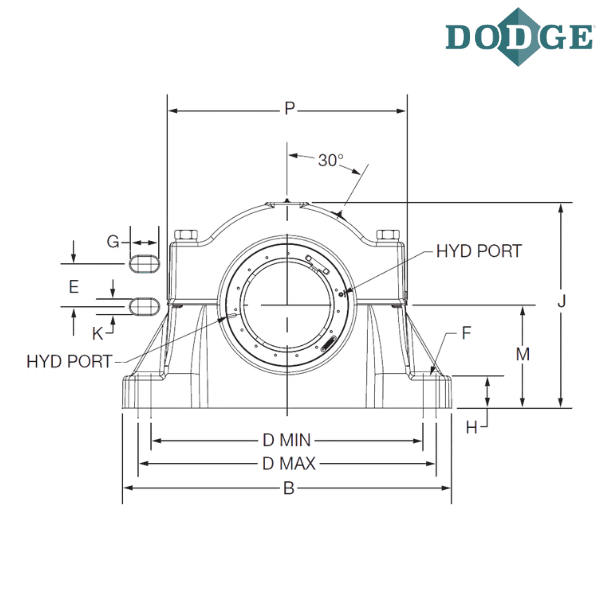

Overall Length (B) mm - 640.1
Width (C) mm - 239.8
Bolt to Bolt Minimum Distance (D min) mm - 532.9
Bolt to Bolt Maximum Distance (D max) mm - 547.1
E (mm) - 140.2
F-Bolt Diameter (mm) - 30
G (mm) - 41.9
H (mm) - 89.9
Overall Height (J) mm - 450.9
K (mm) - 35.1
L (mm) - 310.6
L2 (mm) - 328.4
Base to Center Height (M) mm - 220
P (mm) - 500.4
S (mm) - 143.8
S1 (mm) - 135.1
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
