072922 DODGE - P4B140-ISNX-180MR HYD

Brand - DODGE
Item Number - 072922 DODGE - P4B140-ISNX-180MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3140
Bearing Series - 23140K
Shaft Size (mm) - 180
Description - P4B140-ISNX-180MR HYD
Insert Number - 072898

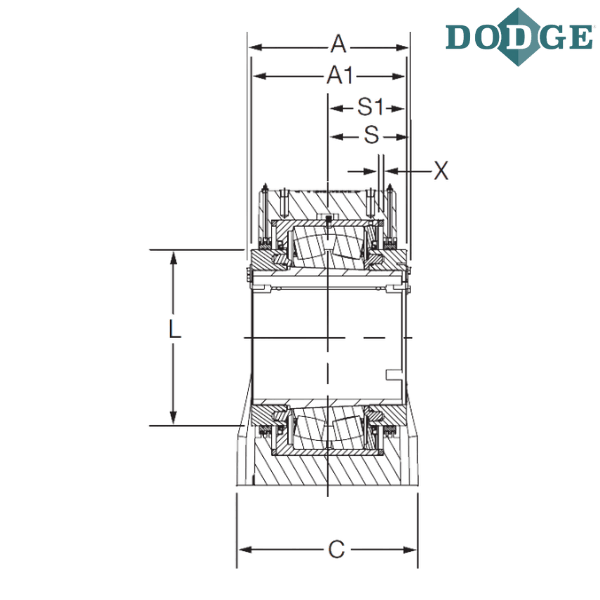

A (mm) - 284.5
A1 (mm) - 270.5
A2 (mm) - 170.2

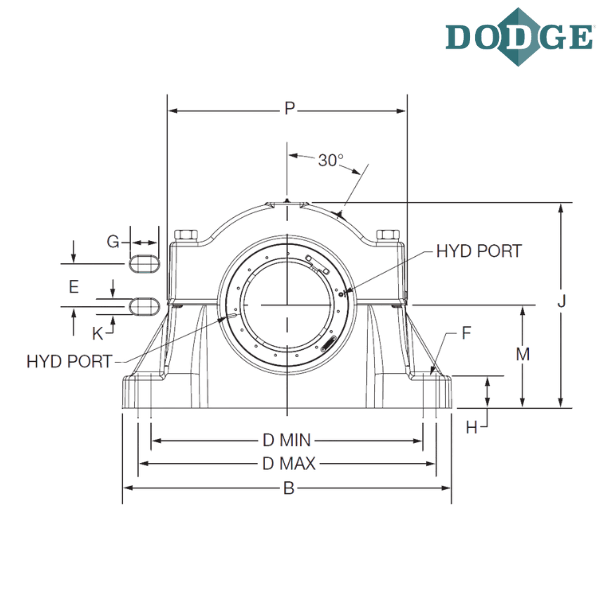

Overall Length (B) mm - 610.1
Width (C) mm - 230.1
Bolt to Bolt Minimum Distance (D min) mm - 502.9
Bolt to Bolt Maximum Distance (D max) mm - 517.1
E (mm) - 130
F-Bolt Diameter (mm) - 30
G (mm) - 41.9
H (mm) - 85.1
Overall Height (J) mm - 426
K (mm) - 35.1
L (mm) - 285
L2 (mm) - 302.5
Base to Center Height (M) mm - 210.1
P (mm) - 470.4
S (mm) - 137.9
S1 (mm) - 130.8
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
