072921 DODGE - P4B138-ISNX-170MR HYD

Brand - DODGE
Item Number - 072921 DODGE - P4B138-ISNX-170MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3138
Bearing Series - 23138K
Shaft Size (mm) - 170
Description - P4B138-ISNX-170MR HYD
Insert Number - 072897

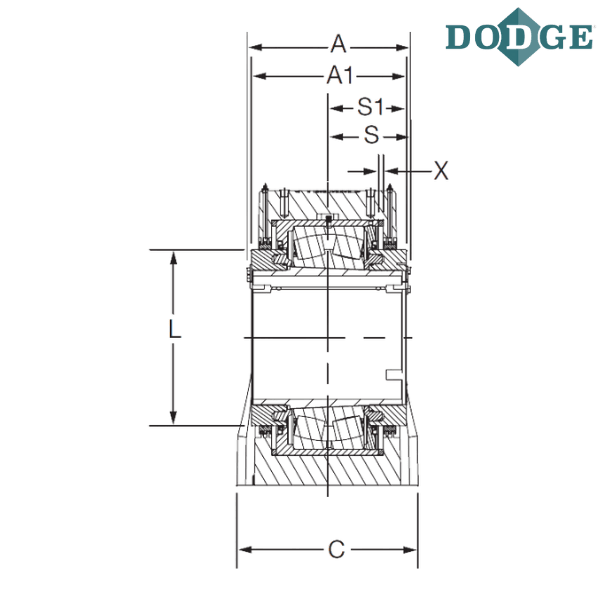

A (mm) - 268.5
A1 (mm) - 254.5
A2 (mm) - 168.1

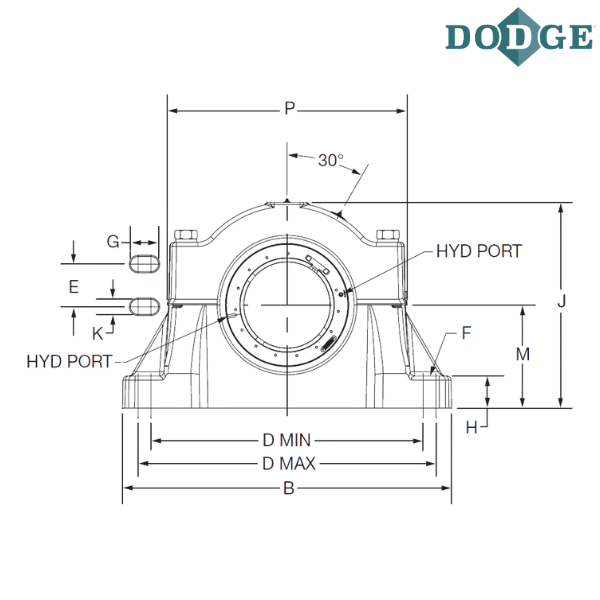

Overall Length (B) mm - 560.1
Width (C) mm - 210.1
Bolt to Bolt Minimum Distance (D min) mm - 474
Bolt to Bolt Maximum Distance (D max) mm - 486.2
E (mm) - 119.9
F-Bolt Diameter (mm) - 24
G (mm) - 34
H (mm) - 80
Overall Height (J) mm - 399.5
K (mm) - 27.9
L (mm) - 278.4
L2 (mm) - 295.9
Base to Center Height (M) mm - 190
P (mm) - 458.2
S (mm) - 133.9
S1 (mm) - 127
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
