072920 DODGE - P4B136-ISNX-160MR HYD

Brand - DODGE
Item Number - 072920 DODGE - P4B136-ISNX-160MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3136
Bearing Series - 23136K
Shaft Size (mm) - 160
Description - P4B136-ISNX-160MR HYD
Insert Number - 072896

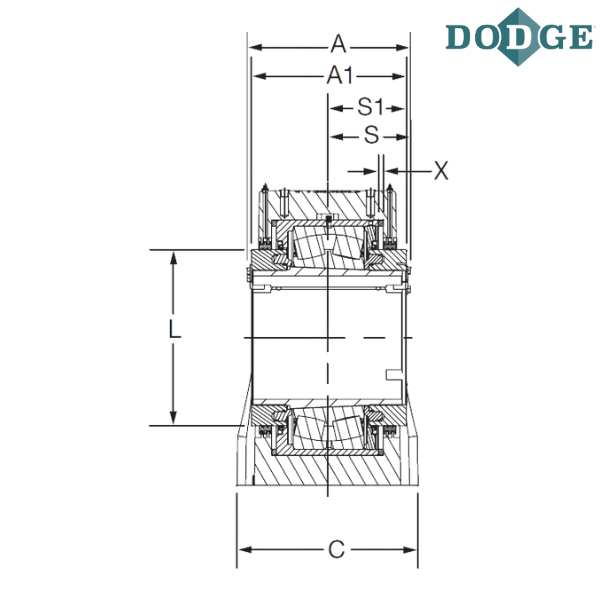

A (mm) - 266.4
A1 (mm) - 252.5
A2 (mm) - 161

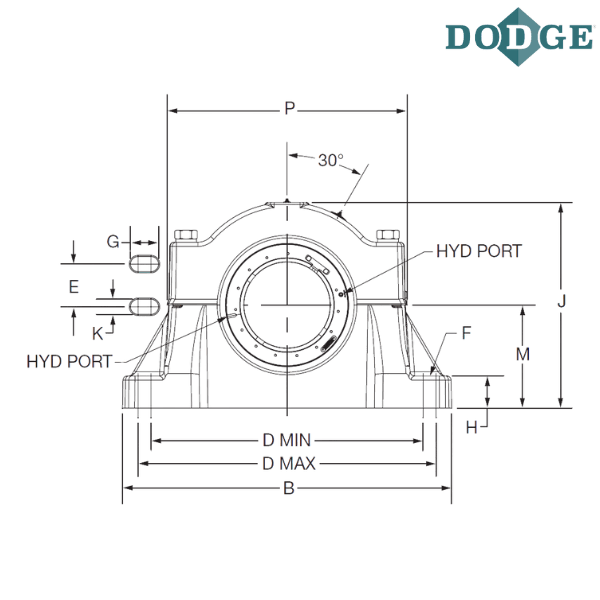

Overall Length (B) mm - 530.1
Width (C) mm - 190
Bolt to Bolt Minimum Distance (D min) mm - 444
Bolt to Bolt Maximum Distance (D max) mm - 456.2
E (mm) - 110
F-Bolt Diameter (mm) - 24
G (mm) - 34
H (mm) - 74.9
Overall Height (J) mm - 380
K (mm) - 27.9
L (mm) - 265.4
L2 (mm) - 283
Base to Center Height (M) mm - 179.8
P (mm) - 437.9
S (mm) - 131.6
S1 (mm) - 124.5
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
