072919 DODGE - P4B134-ISNX-150MR HYD

Brand - DODGE
Item Number - 072919 DODGE - P4B134-ISNX-150MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3134
Bearing Series - 23134K
Shaft Size (mm) - 150
Description - P4B134-ISNX-150MR HYD
Insert Number - 072895

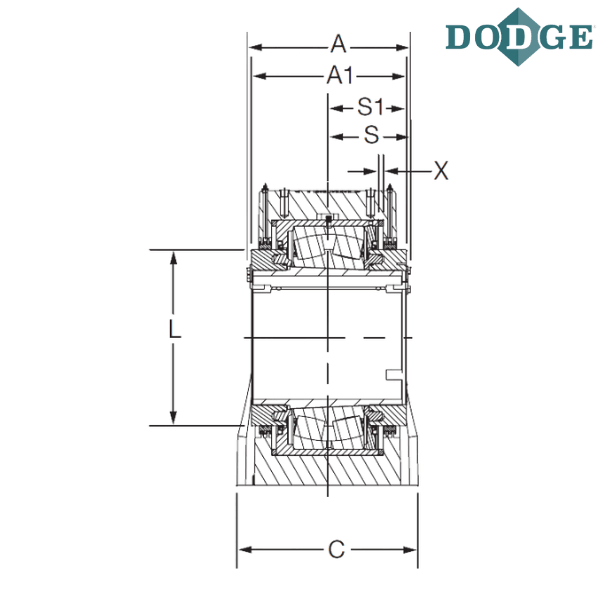

A (mm) - 254.5
A1 (mm) - 240.5
A2 (mm) - 155.2

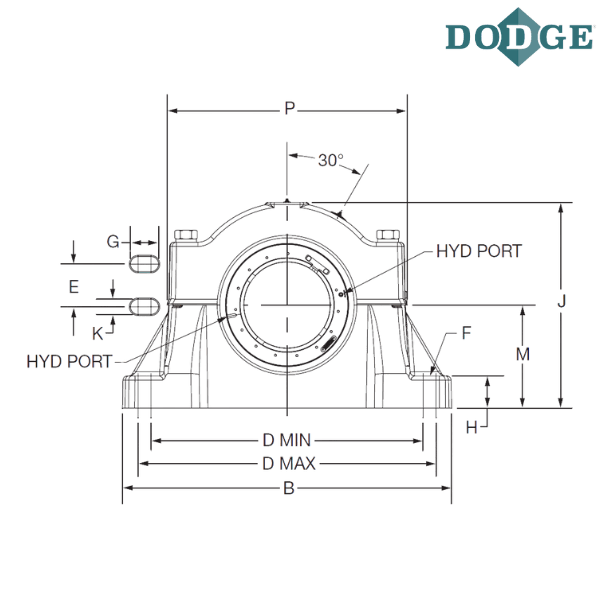

Overall Length (B) mm - 510
Width (C) mm - 180.1
Bolt to Bolt Minimum Distance (D min) mm - 423.9
Bolt to Bolt Maximum Distance (D max) mm - 436.1
E (mm) - 100.1
F-Bolt Diameter (mm) - 24
G (mm) - 34
H (mm) - 70.1
Overall Height (J) mm - 360.4
K (mm) - 27.9
L (mm) - 252.5
L2 (mm) - 268.7
Base to Center Height (M) mm - 169.9
P (mm) - 416.1
S (mm) - 124
S1 (mm) - 116.8
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
