072918 DODGE - P4B176-ISNX-360MR HYD

Brand - DODGE
Item Number - 072918 DODGE - P4B176-ISNX-360MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3176
Bearing Series - 23176K
Shaft Size (mm) - 360
Description - P4B176-ISNX-360MR HYD
Insert Number - 072907
A (mm) - 402.1
A1 (mm) - 378.7
A2 (mm) - 233.7

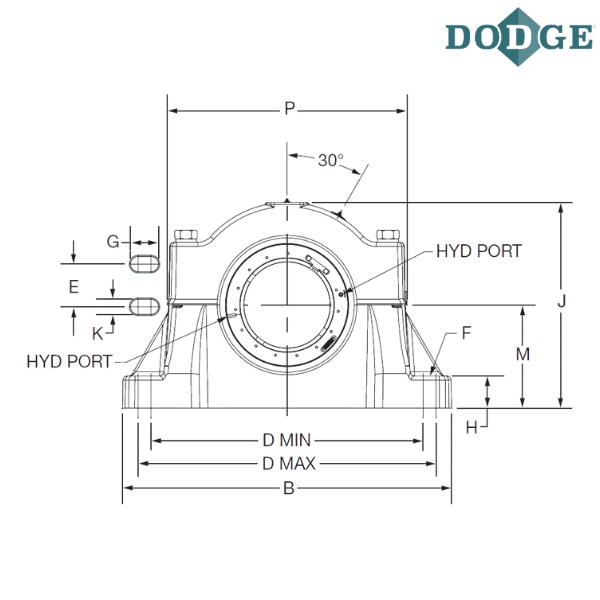

Overall Length (B) mm - 1039.9
Width (C) mm - 359.9
Bolt to Bolt Minimum Distance (D min) mm - 862.1
Bolt to Bolt Maximum Distance (D max) mm - 878.1
E (mm) - 220
F-Bolt Diameter (mm) - 36
G (mm) - 50
H (mm) - 119.9
Overall Height (J) mm - 740.9
K (mm) - 41,9
L (mm) - 469.4
L2 (mm) - 486.7
Base to Center Height (M) mm - 359.9
P (mm) - 822.5
S (mm) - 204.2
S1 (mm) - 192.5
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
