072917 DODGE - P4B172-ISNX-340MR HYD

Brand - DODGE
Item Number - 072917 DODGE - P4B172-ISNX-340MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3172
Bearing Series - 23172K
Shaft Size (mm) - 340
Description - P4B172-ISNX-340MR HYD
Insert Number - 072906

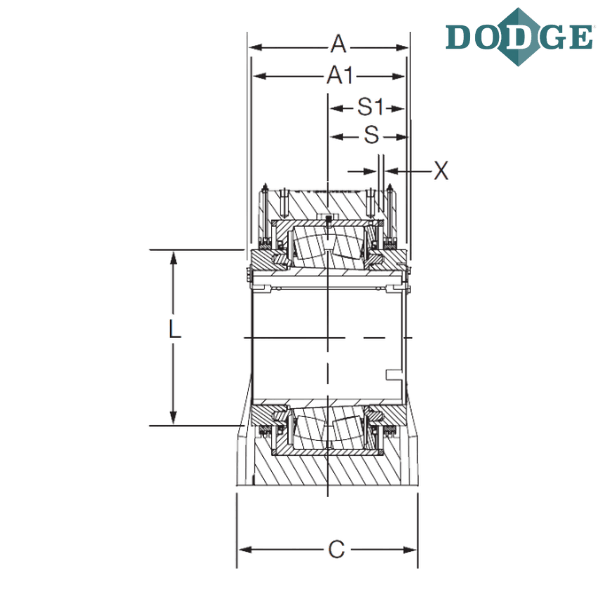

A (mm) - 385.1
A1 (mm) - 368
A2 (mm) - 225.3

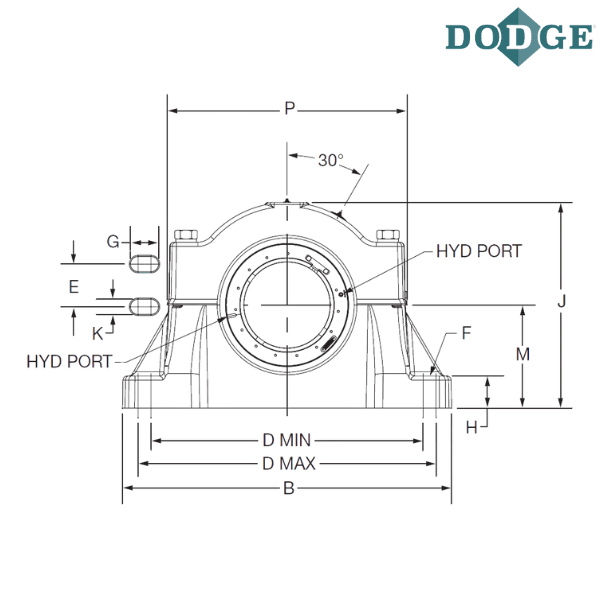

Overall Length (B) mm - 1000
Width (C) mm - 359.9
Bolt to Bolt Minimum Distance (D min) mm - 832.1
Bolt to Bolt Maximum Distance (D max) mm - 848.1
E (mm) - 220
F-Bolt Diameter (mm) - 36
G (mm) - 50
H (mm) - 119.9
Overall Height (J) mm - 724.7
K (mm) - 41.9
L (mm) - 466.1
L2 (mm) - 483.6
Base to Center Height (M) mm - 350
P (mm) - 809.8
S (mm) - 195.8
S1 (mm) - 187.5
Expansion (X) mm - 19.8
Z (mm) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
