072916 DODGE - P4B168-ISNX-320MR HYD

Brand - DODGE
Item Number - 072916 DODGE - P4B168-ISNX-320MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3168
Bearing Series - 23168K
Shaft Size (mm) - 320
Description - P4B168-ISNX-320MR HYD
Insert Number - 072905

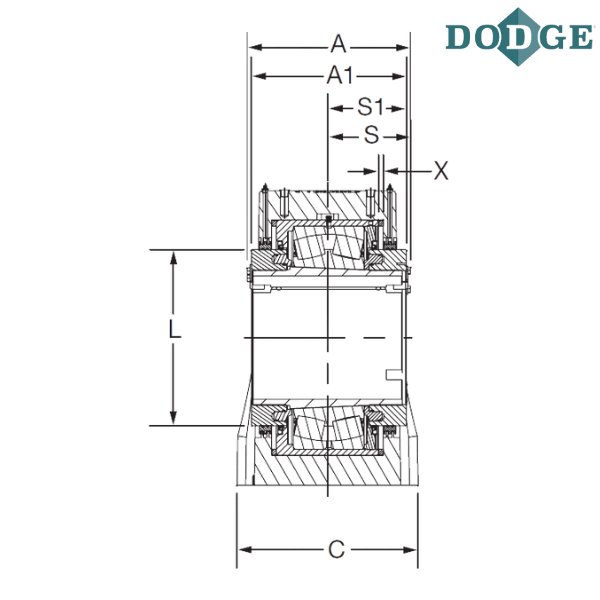

A (mm) - 386.8
A1 (mm) - 365.5
A2 (mm) - 222.3

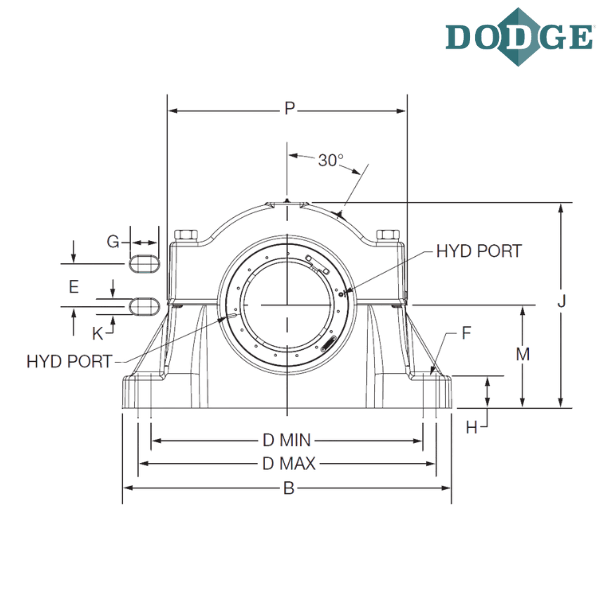

Overall Length (B) mm - 950
Width (C) mm - 359.9
Bolt to Bolt Minimum Distance (D min) mm - 802.1
Bolt to Bolt Maximum Distance (D max) mm - 818.1
E (mm) - 220
F-Bolt Diameter (mm) - 36
G (mm) - 50
H (mm) - 119.9
Overall Height (J) mm - 697
K (mm) - 41.9
L (mm) - 439.7
L2 (mm) - 457.2
Base to Center Height (M) mm - 339.9
P (mm) - 755.9
S (mm) - 192.5
S1 (mm) - 181.9
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
