072915 DODGE - P4B164-ISNX-300MR HYD

Brand - DODGE
Item Number - 072915 DODGE - P4B164-ISNX-300MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3164
Bearing Series - 23164K
Shaft Size (mm) - 300
Description - P4B164-ISNX-300MR HYD
Insert Number - 072904

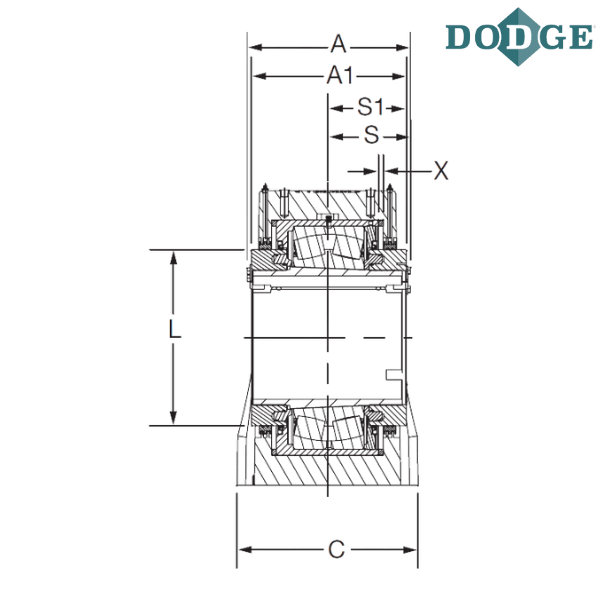

A (mm) - 367.3
A1 (mm) - 350.3
A2 (mm) - 213.1

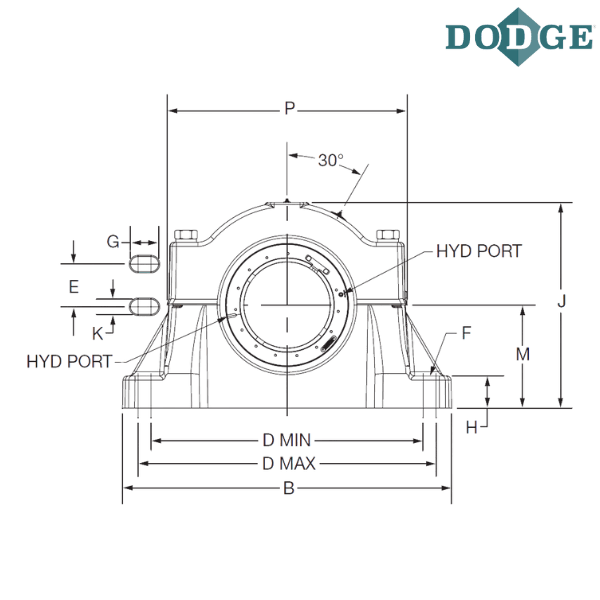

Overall Length (B) mm - 880.1
Width (C) mm - 329.9
Bolt to Bolt Minimum Distance (D min) mm - 741.9
Bolt to Bolt Maximum Distance (D max) mm - 757.9
E (mm) - 199.9
F-Bolt Diameter (mm) - 36
G (mm) - 50
H (mm) - 115.1
Overall Height (J) mm - 662.9
K (mm) - 41.9
L (mm) - 414.8
L2 (mm) - 432.1
Base to Center Height (M) mm - 320
P (mm) - 720.9
S (mm) - 183.4
S1 (mm) - 175
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
