072914 DODGE - P4B160-ISNX-280MR HYD

Brand - DODGE
Item Number - 072914 DODGE - P4B160-ISNX-280MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3160
Bearing Series - 23160K
Shaft Size (mm) - 280
Description - P4B160-ISNX-280MR HYD
Insert Number - 072903

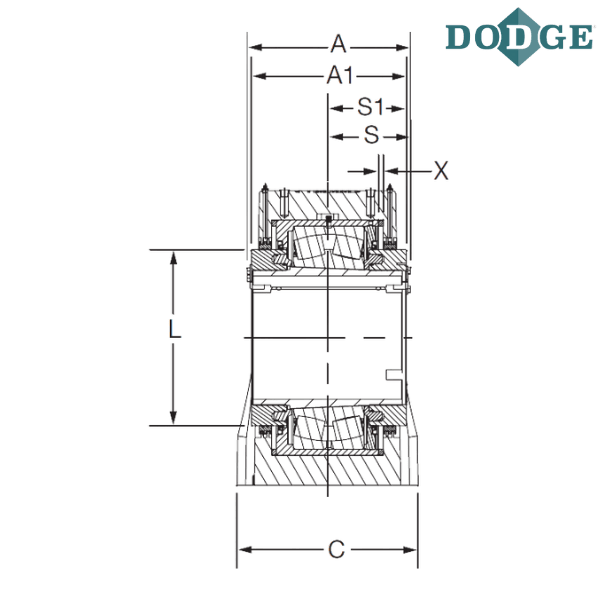

A (mm) - 350.5
A1 (mm) - 333.5
A2 (mm) - 208.5

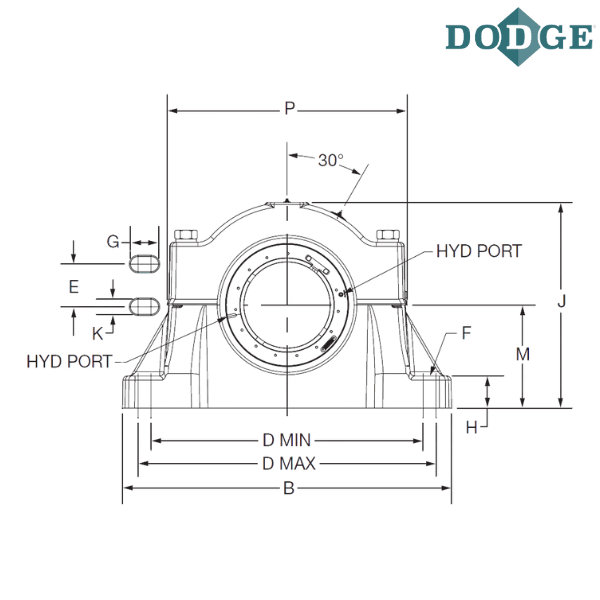

Overall Length (B) mm - 830.1
Width (C) mm - 310.1
Bolt to Bolt Minimum Distance (D min) mm - 702.1
Bolt to Bolt Maximum Distance (D max) mm - 718.1
E (mm) - 190
F-Bolt Diameter (mm) - 36
G (mm) - 50
H (mm) - 110
Overall Height (J) mm - 617.5
K (mm) - 41.9
L (mm) - 388.6
L2 (mm) - 405.9
Base to Center Height (M) mm - 300
P (mm) - 682.8
S (mm) - 178.6
S1 (mm) - 170.2
Expansion (X) mm - 19.8
Z (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
