072913 DODGE - P4B156-ISNX-260MR HYD

Brand - DODGE
Item Number - 072913 DODGE - P4B156-ISNX-260MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3156
Bearing Series - 23156K
Shaft Size (mm) - 260
Description - P4B156-ISNX-260MR HYD
Insert Number - 072902

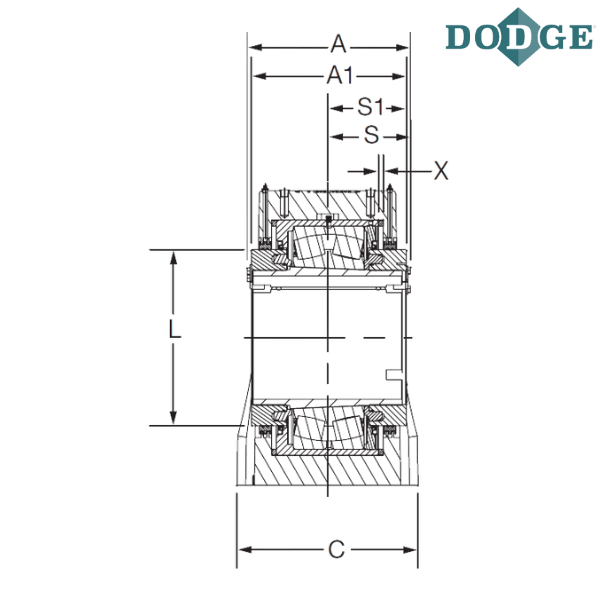

A (mm) - 337.3
A1 (mm) - 320.3
A2 (mm) - 201.7

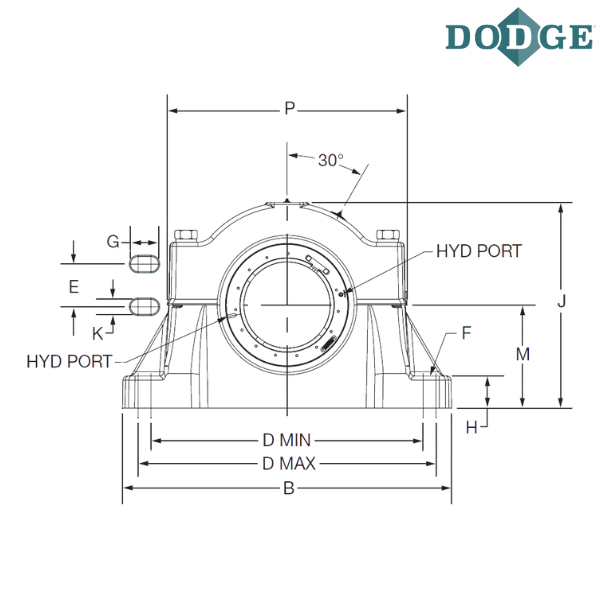

Overall Length (B) mm - 789.9
Width (C) mm - 279.9
Bolt to Bolt Minimum Distance (D min) mm - 661.9
Bolt to Bolt Maximum Distance (D max) mm - 677.9
E (mm) - 160
F-Bolt Diameter (mm) - 36
G (mm) - 50
H (mm) - 104.9
Overall Height (J) mm - 582.9
K (mm) - 41.9
L (mm) - 362.7
L2 (mm) - 380.5
Base to Center Height (M) mm - 279.9
P (mm) - 619.3
S (mm) - 171.5
S1 (mm) - 162.8
Expansion (X) mm - 19.8
Z (mm) - 2.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
