072912 DODGE - P4B152-ISNX-240MR HYD

Brand - DODGE
Item Number - 072912 DODGE - P4B152-ISNX-240MR HYD
Category - ISNX Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3152
Bearing Series - 23152K
Shaft Size (mm) - 240
Description - P4B152-ISNX-240MR HYD
Insert Number - 072901

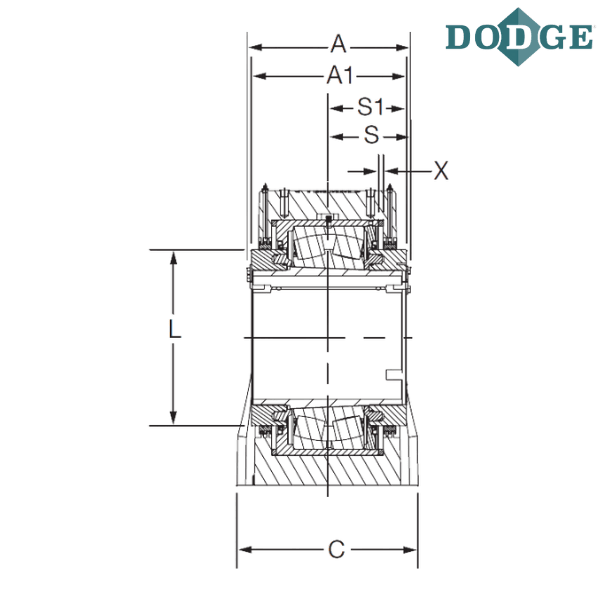

A (mm) - 334.5
A1 (mm) - 317.8
A2 (mm) - 197.1

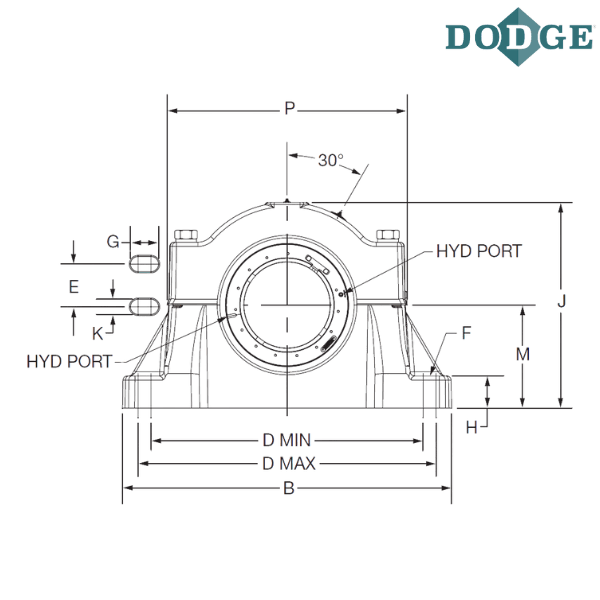

Overall Length (B) mm - 770.1
Width (C) mm - 279.9
Bolt to Bolt Minimum Distance (D min) mm - 642.1
Bolt to Bolt Maximum Distance (D max) mm - 658.1
E (mm) - 160
F-Bolt Diameter (mm) - 36
G (mm) - 50
H (mm) - 100.1
Overall Height (J) mm - 546.9
K (mm) - 41.9
L (mm) - 336.8
L2 (mm) - 354.3
Base to Center Height (M) mm - 259.8
P (mm) - 617.7
S (mm) - 167.4
S1 (mm) - 159
Expansion (X) mm - 19.8
Z (mm) - 0
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
ISNX - Hydraulic Imperial, large bore
M - Metric
R - Trident rubbing seal
HYD - Built-in hydraulic mount and dismount

** Images are for representation purposes only
