072744 DODGE - P4B3156-ISAF-1008R HYD

Brand - DODGE
Item Number - 072744 DODGE - P4B3156-ISAF-1008R HYD
Category - ISAF Pillow Block Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3156
Bearing Series - 23156K
Shaft Size (inch) - 10.5
Description - P4B3156-ISAF-1008R HYD
Insert Number - 072747
SAF Series - 3156
Bearing Series - 23156K

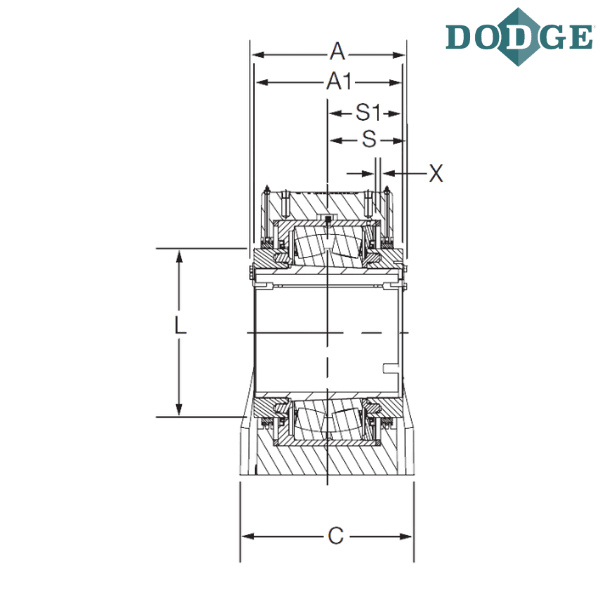

A (inch) - 13.28
A1 (inch) - 12.61
Overall Length (B) inch - 38.25
Width (C) inch - 14.75
Bolt to Bolt Minimum Distance (D min) inch - 31.63
Bolt to Bolt Maximum Distance (D max) inch - 34.63
E (inch) - 9
F-Bolt Diameter (inch) - 1.625
G (inch) - 3.25
H (inch) - 3.75
Overall Height (J) inch - 23.93
K (inch) - 1.76
L (inch) - 14.28
Base to Center Height (M) inch - 12
P (inch) - 27.87
S (inch) - 6.75
S1 (inch) - 6.41
Expansion (X) inch - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Contact Seal
HYD - Hydraulic version built in hydraulic assist

** Images are for representation purposes only
