072690 DODGE - P4B3176-ISAF-1315R HYD

Brand - DODGE
Item Number - 072690 DODGE - P4B3176-ISAF-1315R HYD
Category - ISAF Pillow Block Hydraulic
Type - Push-Pull Adapter
Housing Designation - 3176
Bearing Series - 23176K
Shaft Size (inch) - 14
Description - P4B3176-ISAF-1315R HYD
Insert Number - 072693
SAF Series - 3176
Bearing Series - 23176K

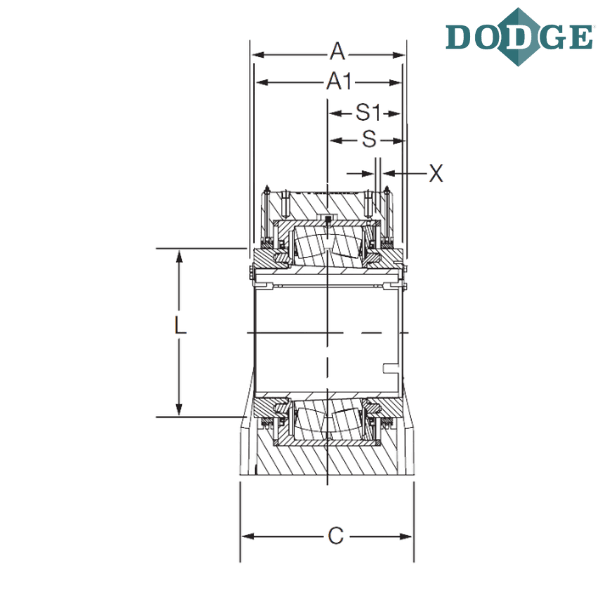

A (inch) - 15.83
A1 (inch) - 14.91
Overall Length (B) inch - 46
Width (C) inch - 17.13
Bolt to Bolt Minimum Distance (D min) inch - 39.25
Bolt to Bolt Maximum Distance (D max) inch - 40.75
E (inch) - 11
F-Bolt Diameter (inch) - 2
G (inch) - 2.87
H (inch) - 5.25
Overall Height (J) inch - 29.5
K (inch) - 2.12
L (inch) - 18.48
Base to Center Height (M) inch - 14.5
P (inch) - 33.56
S (inch) - 8.04
S1 (inch) - 7.58
Expansion (X) inch - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Contact Seal
HYD - Hydraulic version built in hydraulic assist

** Images are for representation purposes only
