072565 DODGE - P4B534-ISAF-600R HYD

Brand - DODGE
Item Number - 072565 DODGE - P4B534-ISAF-600R HYD
Category - ISAF Pillow Block Hydraulic
Type - Push-Pull Adapter
Housing Designation - 534
Bearing Series - 22234K
Shaft Size (inch) - 6
Description - P4B534-ISAF-600R HYD
Insert Number - 072573
SAF Series - 534
Bearing Series - 22234K

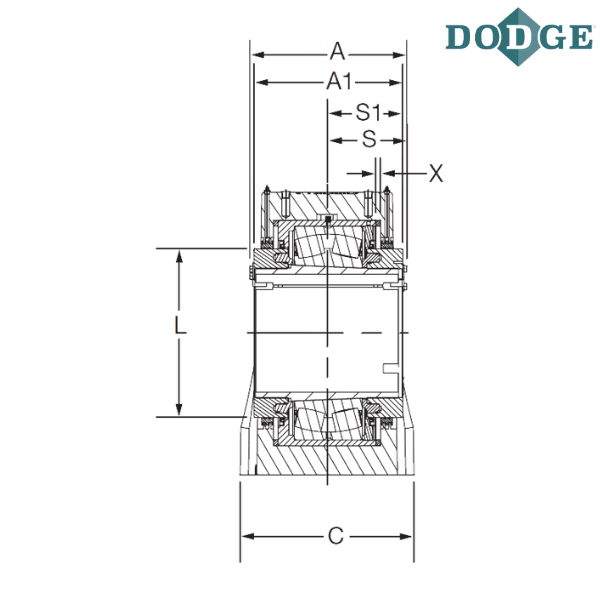

A (inch) - 9.81
A1 (inch) - 9.26
Overall Length (B) inch - 24.75
Width (C) inch - 6.75
Bolt to Bolt Minimum Distance (D min) inch - 19.38
Bolt to Bolt Maximum Distance (D max) inch - 21.63
E (inch) - 4.25
F-Bolt Diameter (inch) - 1
G (inch) - 2.25
H (inch) - 2.87
Overall Height (J) inch - 14.56
K (inch) - 1.12
L (inch) - 10.19
Base to Center Height (M) inch - 7.06
P (inch) - 17.38
S (inch) - 4.81
S1 (inch) - 4.54
Expansion (X) inch - 0.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Contact Seal
HYD - Hydraulic version built in hydraulic assist

** Images are for representation purposes only
