072413 DODGE - SF4S-S2-315RE

Brand - DODGE
Item Number - 072413 DODGE - SF4S-S2-315RE
Category - 4-Bolt Steel S-2000-HD Flange (Expansion)
Shaft Size (inch) - 3.9375
Description - SF4S-S2-315RE

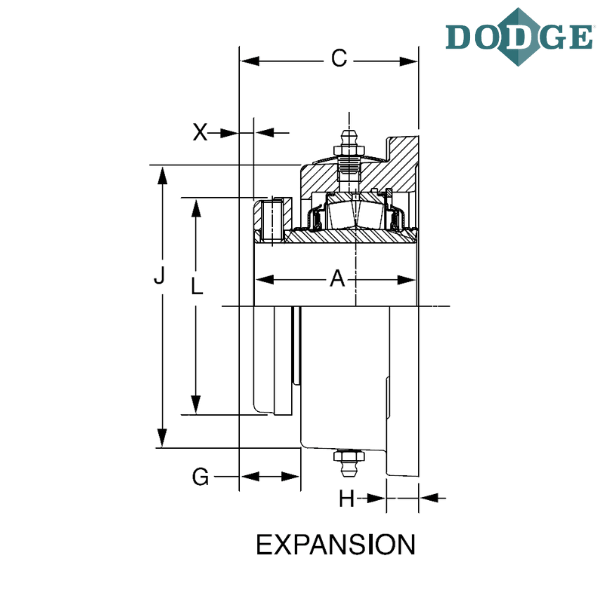

Length Through Bore (A) inch - 4.48
Overall Length (B) inch - 9.49
Thickness (C) inch - 4.84
Bolt Center to Center Length (D) inch - 7.6
F-Bolt Diameter (inch) - 1
G (inch) - 0.85
H (inch) - 1.5
J (inch) - 8.22
K (inch) - 10.75
L (inch) - 6
N (inch) - 4.68
Total Expansion (X) inch - 0.15625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
