072407 DODGE - SF4S-S2-203RE

Brand - DODGE
Item Number - 072407 DODGE - SF4S-S2-203RE
Category - 4-Bolt Steel S-2000-HD Flange (Expansion)
Shaft Size (inch) - 2.1875
Description - SF4S-S2-203RE

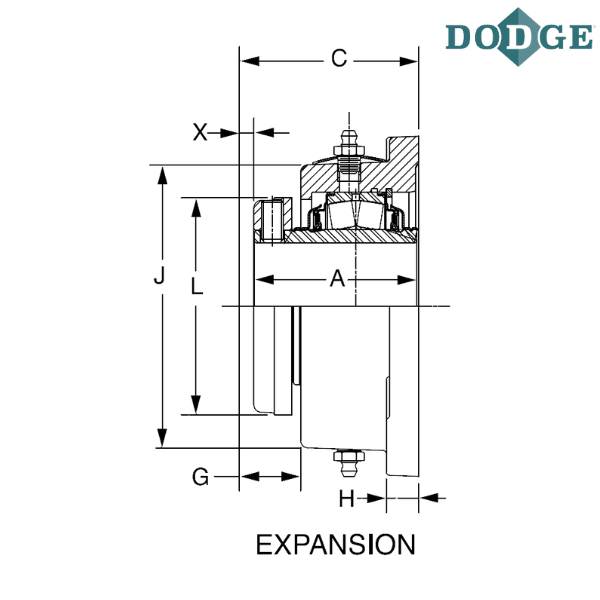

Length Through Bore (A) inch - 2.94
Overall Length (B) inch - 5.87
Thickness (C) inch - 3.16
Bolt Center to Center Length (D) inch - 4.51
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.83
H (inch) - 0.75
J (inch) - 5.03
K (inch) - 6.38
L (inch) - 3.75
N (inch) - 2.93
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
