072399 DODGE - SF4S-S2-315R

Brand - DODGE
Item Number - 072399 DODGE - SF4S-S2-315R
Category - 4-Bolt Steel S-2000-HD Flange (Non-Expansion)
Shaft Size (inch) - 3.9375
Description - SF4S-S2-315R

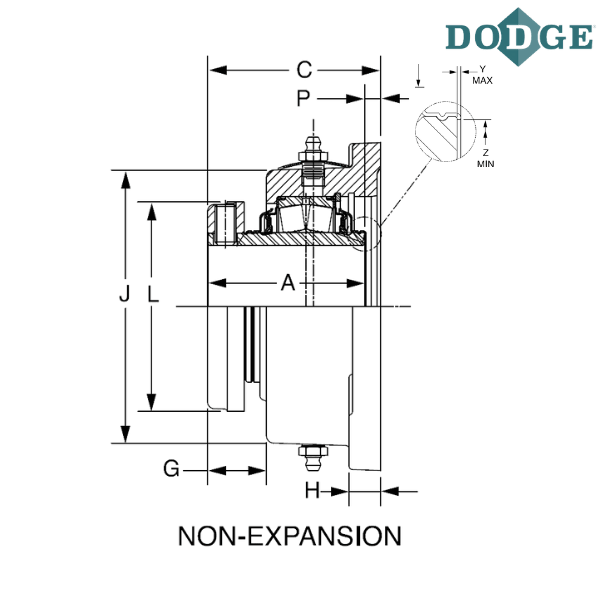

Length Through Bore (A) inch - 4.48
Overall Length (B) inch - 9.49
Thickness (C) inch - 4.84
Bolt Center to Center Length (D) inch - 7.6
Bolt Diameter (F) inch - 1
G (inch) - 0.85
H (inch) - 1.5
J (inch) - 8.22
K (inch) - 10.75
L (inch) - 6
N (inch) - 4.68
P (inch) - 0.36
Y (inch) - 0.025
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
