072398 DODGE - SF4S-S2-307R

Brand - DODGE
Item Number - 072398 DODGE - SF4S-S2-307R
Category - 4-Bolt Steel S-2000-HD Flange (Non-Expansion)
Shaft Size (inch) - 3.4375
Description - SF4S-S2-307R

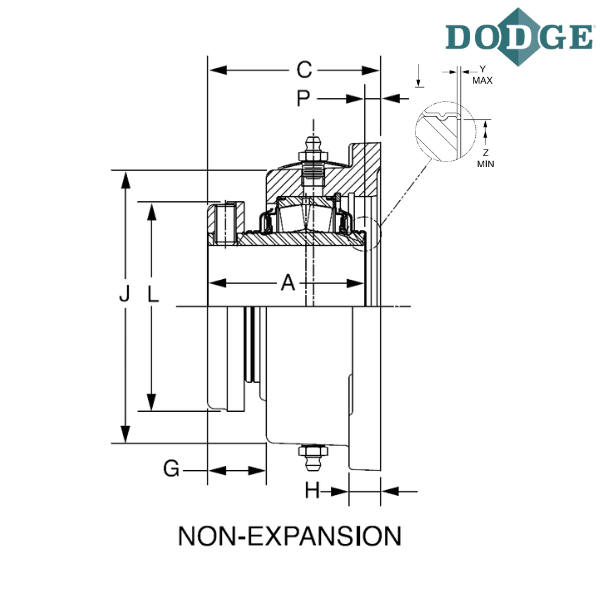

Length Through Bore (A) inch - 4
Overall Length (B) inch - 8.37
Thickness (C) inch - 4.11
Bolt Center to Center Length (D) inch - 6.72
Bolt Diameter (F) inch - 0.75
G (inch) - 0.78
H (inch) - 1.28
J (inch) - 7.49
K (inch) - 9.5
L (inch) - 5.5
N (inch) - 4.17
P (inch) - 0.11
Y (inch) - 0.025
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
