072396 DODGE - SF4S-S2-215R

Brand - DODGE
Item Number - 072396 DODGE - SF4S-S2-215R
Category - 4-Bolt Steel S-2000-HD Flange (Non-Expansion)
Shaft Size (inch) - 2.9375
Description - SF4S-S2-215R

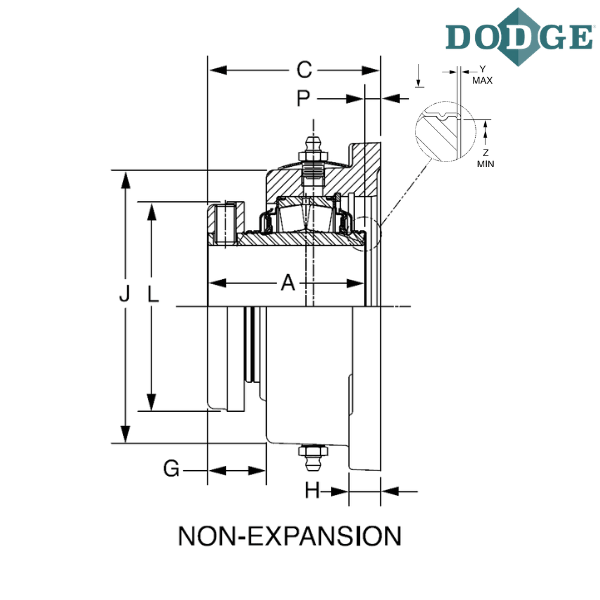

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 7.18
Thickness (C) inch - 3.87
Bolt Center to Center Length (D) inch - 5.57
Bolt Diameter (F) inch - 0.75
G (inch) - 1.04
H (inch) - 1.06
J (inch) - 6.51
K (inch) - 7.88
L (inch) - 4.7
N (inch) - 3.75
P (inch) - 0.28
Y (inch) - 0.025
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
